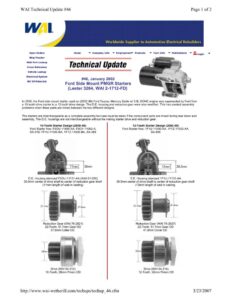

WAI Technical Update #46 Wit Open Orders Home Ship Tracker WAI Part Lookup Cross Reference Vehicle Lookup Electrical System Bill Of Materials * Company Info Technical Update #46, January 2002 Ford Side Mount PMGR Starters (Lester 3264, WAI 2-1712-FD) Page | of 2 rT 0 ~ +* Employment¥® Products ~~ TechInfo -~™ Publications am Login In 2000, the Ford side mount starter used on (2002-96) Ford Taurus, Mercury Sable w/ 3.0L DOHC engine was superseded by Ford from a 10-tooth drive starter to a 12-tooth drive design. The D.E. housing and reduction gear were also modified. This has created assembly problems when these parts are mixed between the two different designs. The starters are interchangeable as a complete assembly but care must be taken if the component parts are mixed during tear down and assembly. The D.E. housings are not interchangeable without the mating starter drive and reduction gear. 12-Tooth Starter Design (2002-00) Ford Starter Nos: 1F1U-11000-AA, 1F1Z-11002-AA, SA-896 10-Tooth Starter Design (2000-96) Ford Starter Nos: FSQU-11000-AA, F50Y-11002-A, SA-818; YF1U-11000-BA, YF1Z-11002-BA, SA-888 11mm} ae D.E. Housing stamped F50U-11131-AA (WAI 51-256) 36.0mm center of drive shaft to center of reduction gear shaft (11mm length of web in casting) Reduction Gear (WAI 76-2821) 22-Tooth, 51.7mm Gear OD 37.8mm Collar OD Drive (WAI 54-212) 10-Tooth, 28mm Pinion OD http://www.wai-wetherill.com/techups/techup_46.cfm 13mm{] |38.5mm D.E. Housing stamped 1F1U-11131-AA 38.5mm center of drive shaft to center of reduction gear shaft (13mm length of web in casting = ——— 41.8em Reduction Gear (WAI 76-2827) 22-Tooth, 51.7mm Gear OD 41.8mm Collar OD Drive (WAI 54-215) 12-Tooth, 32mm Pinion OD 3/23/2007 WAI Technical Update #46 Page 2 of 2 The plastic retainer for attaching the drive to the shift lever has been redesigned with two flat areas to allow for the larger 41.8mm reduction gear collar. WAI is modifying the plastic retainer on all Ford PMGR drives to include the two flat areas. This modification will allow the later style reduction gear (WAI 76-2827) to be used in earlier applications. Information or questions: copyright © 2002 Wetherill Associates, Inc. All rights reserved. http://www.wai-wetherill.com/techups/techup_46.cfm 3/23/2007
