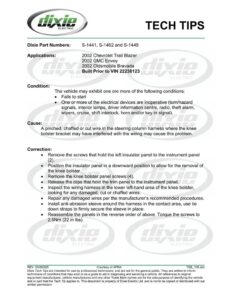

“dixie LD f TECH TIPS Dixie Part Numbers: S-1441, S-1462 and S-1449 Applications: 2002 Chevrolet Trail Blazer 2002 GMC Envoy 2002 Oldsmobile Bravada Built Prior to VIN 22238123 Condition: The vehicle may exhibit one ore more of the following conditions: e Fails to start e One or more of the electrical devices are inoperative (turn/hazard signals, interior lamps, driver information centre, radio, theft alarm, wipers, cruise, shift interlock, horn and/or key in signal). Cause: A pinched, chaffed or cut wire in the steering column harness where the knee bolster bracket may have interfered with the wiring may cause this problem. Correction: e Remove the screws that hold the left insulator panel to the instrument panel (2). e Position the insulator panel in a downward position to allow for the removal of the knee bolster. e Remove the knee bolster panel screws (4). e Release the clips that hold the trim panel to the instrument panel. e Inspect the wiring harness in the lower left-hand area of the knee bolster, looking for any damaged, cut or chaffed wires. e Repair any damaged wires per the manufacturer’s recommended procedures. e Install anti-abrasion sleeve around the harness in the contact area, use tie down straps to firmly secure the sleeve in place. e Reassemble the panels in the reverse order of above. Torque the screws to 2.5Nm (22 in lbs). REV: 20090525 Courtesy of APRA TSB_108.doc Dixie Tech Tips are intended for use by professional technicians, and are not for the general public. They are written to inform technicians of conditions that may exist or as a guide to aid in diagnosing and servicing a vehicle. All references to original equipment manufactures, vehicle manufactures and any other Trade Mark names are for the sole purpose of identifying the vehicle and or part that the Tech Tip applies to. This document is property of Dixie Electric Ltd. and is not to be copied or distributed with out written permission.
