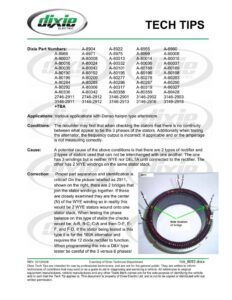

dixie anee / TECH TIPS Dixie Part Numbers: A-8904 A-8922 A-8955 A-8960 Applications: Conditions: Cause: Correction: REV: 20120426 A-8966 A-8971 A-8975 A-8999 A-80006 A-80007 A-80008 A-80013 A-80014 A-80015 A-80016 A-80024 A-80032 A-80036 A-80037 A-80039 A-80042 A-80101 A-80188 A-80189 A-80190 A-80192 A-80195 A-80196 A-80198 A-80199 A-80200 A-80277 A-80278 A-80283 A-80284 A-80285 A-80286 A-80287 A-80290 A-80292 A-80306 A-80317 A-80319 A-80327 A-80336 A-80342 A-80358 A-80359 A-80428 2746-2911 2746-2912 3146-2901 3146-2902 3146-2903 3146-2911 3146-2912 3146-2913 3146-2916 3146-2918 +TBA Various applications with Denso hairpin type alternators The rebuilder may find that when checking the stators that there is no continuity between what appear to be the 3 phases of the stators. Additionally when testing the alternator, the frequency output is incorrect, if applicable and or the amperage is not measuring correctly. A potential cause of the above conditions is that there are 2 types of rectifier and 2 types of stators used that can not be interchanged with one another. The one has 3 windings but is neither WYE nor DELTA until connected to the rectifier. The other has 2 WYE windings on the same stator stack. Proper part separation and identification is 2911 critical! On the picture labelled as 2911, shown on the right, there are 2 bridges that join the stator windings together. If these are closely examined they are the center (N) of the WYE winding so in reality this would be 2 WYE stators wound onto one stator stack. When testing the phase balance on this type of stator the checks would be: A-B, B-C, C-A and then D-E, E- F, and F-D. If the stator being tested is this type it is for the 160A alternator and requires the 12 diode rectifier to function. When programming this into a D&V type tester be careful of the 3 versus 6 phases! Note location of bridge Courtesy of Dixie Technical Department TSB_8092.docx Dixie Tech Tips are intended for use by professional technicians, and are not for the general public. They are written to inform technicians of conditions that may exist or as a guide to aid in diagnosing and servicing a vehicle. All references to original equipment manufactures, vehicle manufactures and any other Trade Mark names are for the sole purpose of identifying the vehicle and or part that the written permission. Tech Tip applies to. This document is property of Dixie Electric Ltd. and is not to be copied or distributed with out
