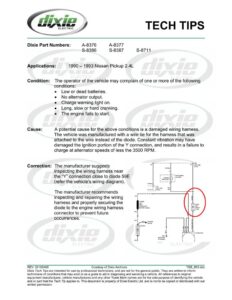

chiwia . & | [| { 8 | axees / TECH TIPS Dixie Part Numbers: A-8376 A-8377 S-8386 S-8387 S-8711 Applications: 1990 — 1993 Nissan Pickup 2.4L Condition: The operator of the vehicle may complain of one or more of the following conditions: e Low or dead batteries. e No alternator output. e Charge warning light on. e Long, slow or hard cranking. e The engine fails to start. Cause: A potential cause for the above conditions is a damaged wiring harness. The vehicle was manufactured with a wire tie for the harness that was attached to the wire instead of the diode. Constant vibration may have damaged the ignition portion of the Y connection, and results in a failure to charge at alternator speeds of less the 3500 RPM. Correction: The manufacturer suggests inspecting the wiring harness near t the “Y” connection close to diode 59E “cuae(P) leer (refer the vehicle’s wiring diagram). —- CLUSTER The manufacturer recommends inspecting and repairing the wiring harness and properly securing the on diode to the engine wiring harness parry cae. connector to prevent future occurrences. 2 ALTERNATOR ceo 2 (RIGHT SIDE ~ OF ENGINE) REV: 20100409 Courtesy of Dixie Archives TSB_893.doc Dixie Tech Tips are intended for use by professional technicians, and are not for the general public. They are written to inform technicians of conditions that may exist or as a guide to aid in diagnosing and servicing a vehicle. All references to original equipment manufactures, vehicle manufactures and any other Trade Mark names are for the sole purpose of identifying the vehicle and or part that the Tech Tip applies to. This document is property of Dixie Electric Ltd. and is not to be copied or distributed with out written permission.
