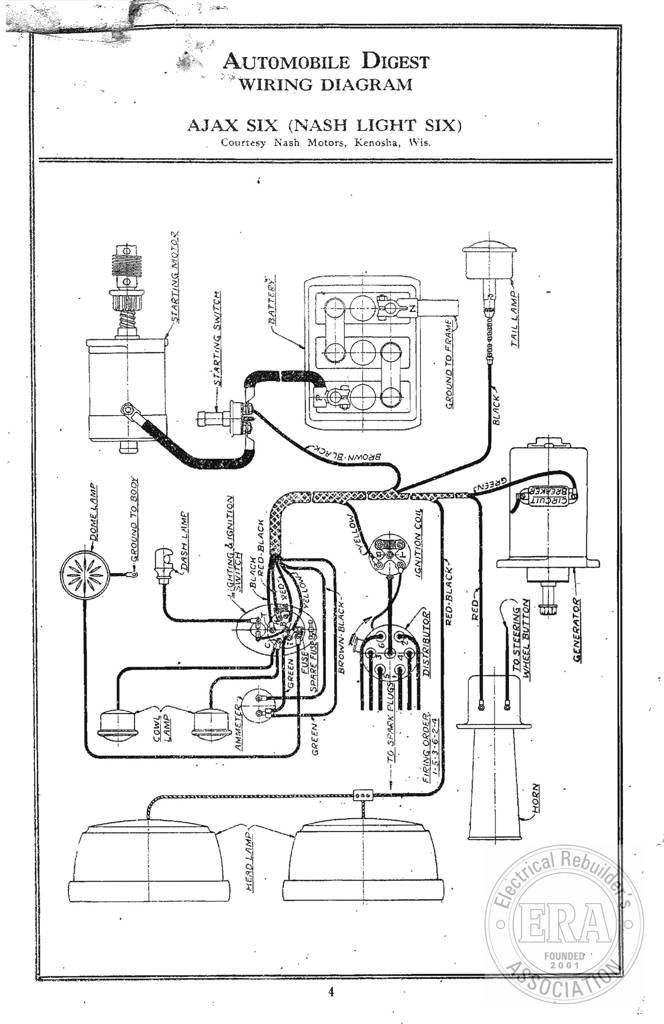

Ajax Six (Nash Light Six)

AUTOMOBILE DIGEST WIRING DIAGRAM Xx (NASH LIGHT SIX) Courtesy AJAX SI Nash Motors, Kenosha, Wis. GAT WL rer) OL ONNOSD BITING BOLO SATIGV LS. DNTLA vis — HOV 1G HOUIMS_ 7 RNOTIINDTY DNILHD IF GNWT HSH Ay NYT FWOG- GIGIO ONIAF | TT OUT

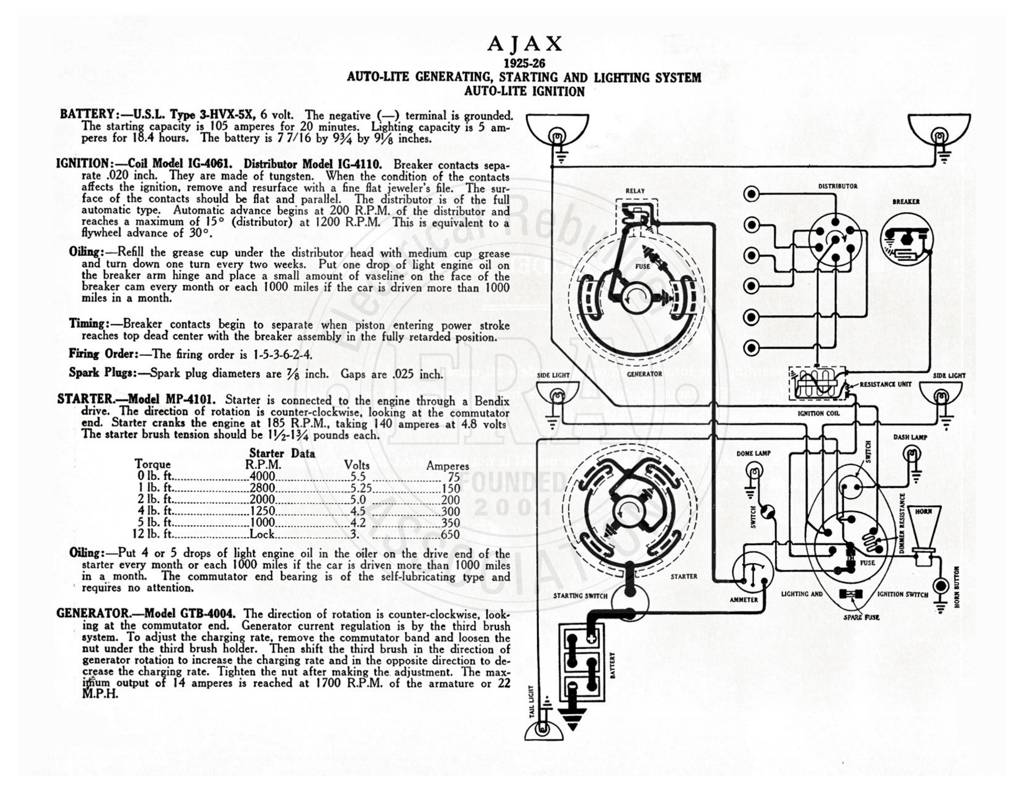

Ajax 1925-1926

AJAX 1925-26 AUTO-LITE GENERATING, STARTING AND LIGHTING SYSTEM AUTO-LITE IGNITION BATTERY :—U.S.L. Type 3-HVX-5X, 6 volt. The negative (—) terminal is grounded. e starting capacity is 105 amperes for 20 minutes. Lighting capacity is 5 am- peres for 18.4 ours, The battery is 7 7/16 by 934 by 9% inches. IGNITION: —Coil Model IG-4061. Distributor Model IG-4110. Breaker contacts sepa- rate . inch. They are made of tungsten. When the condition of the contacts affects the ignition, remove and resurface with a fine flat jeweler’s file. The sur- face of the contacts should be flat and parallel. The distributor is of the full automatic type. Automatic advance begins at 200 R.P.M. of the distributor and reaches a maximum of 15°

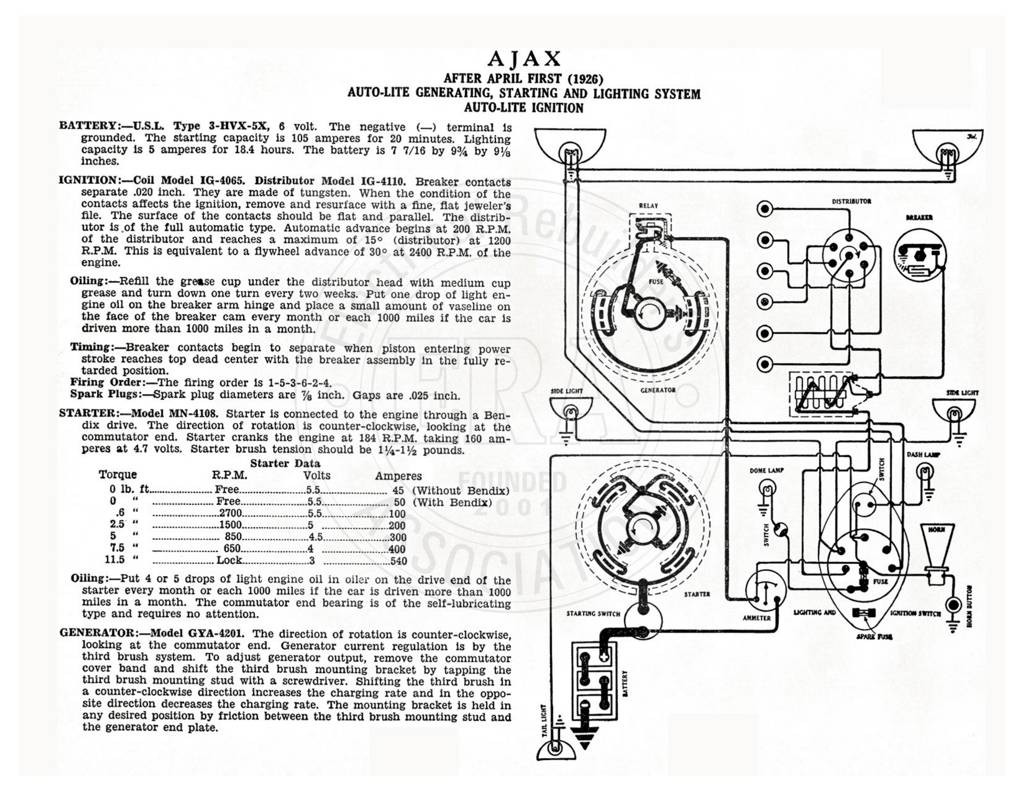

Ajax 1926

AJAX AFTER APRIL FIRST (1926) AUTO-LITE GENERATING, STARTING AND LIGHTING SYSTEM AUTO.-LITE IGNITION BATTERY:—U.S.L. Type 3-HVX-5X, 6 volt. The negative (—) terminal is grounded. The starting capacity is 105 amperes for 20 minutes. Lighting capacity is 5 amperes for 18.4 hours. The battery is 7 7/16 by 9% by 9% inches. IGNITION :—Coil Model IG-4065. Distributor Model IG-4110. Breaker contacts separate .020 inch. They are made of tungsten. When the condition of the contacts affects the ignition, remove and resurface with a fine, flat jeweler’s file. The surface of the contacts should be flat and parallel. The distrib- utor is of the full automatic type. Automatic advance begins at 200 R.P.M. of the distributor and reaches a maximum of 15°
