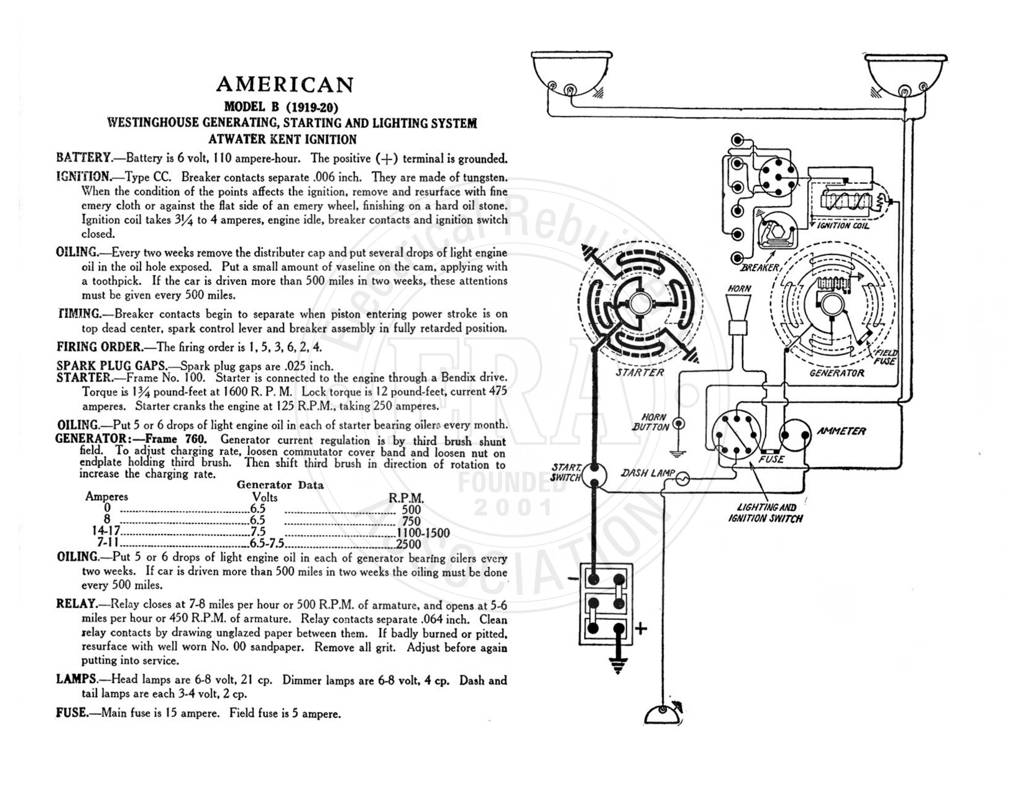

American Model B 1919-1920

AMERICAN MODEL B (1919-20) WESTINGHOUSE GENERATING, STARTING AND LIGHTING SYSTEM ATWATER KENT IGNITION BATTERY.—Battery is 6 volt, 110 ampere-hour. The positive (+-) terminal is grounded. IGNITION.—Type CC. Breaker contacts separate .006 inch. They are made of tungsten. When the condition of the points affects the ignition, remove and resurface with fine emery cloth or against the flat side of an emery wheel, finishing on a hard oil stone. Ignition coil takes 314 to 4 amperes, engine idle, breaker contacts and ignition switch closed. OILING.—Every two weeks remove the distributer cap and put several drops of light engine oil in the oil hole exposed. Put a small amount of vaseline on the cam, applying with a toothpick. If the car is

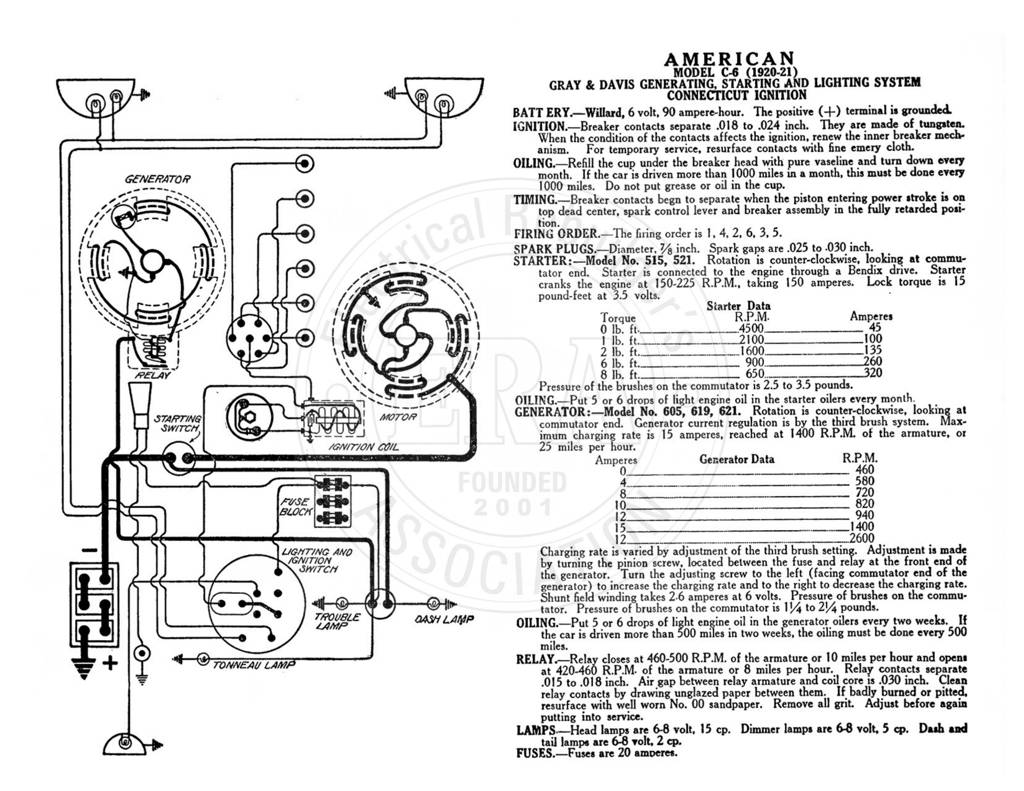

American Model C-6 1920-1921

STARTING SWITCH, ” OASH LAMP AMERICAN MODEL C46 (1920-21), GRAY & DAVIS GENERATING, STARTING AND LIGHTING SYSTEM CONNECTICUT IGNITION BATT ERY.—Willard, 6 volt, 90 ampere-hour. The positive (++) terminal is grounded. IGNITION.—Breaker contacts separate .018 to .024 inch. They are made of tungsten. When the condition of the contacts affects the ignition, renew the inner breaker mech- anism. For temporary service, resurface contacts with fine emery clo OILING.—Refill the cup under the breaker head with pure vaseline and turn down every month, If the car is driven more than 1000 miles in a month, this must be done every 1000 miles. Do not put grease or oil in the cup. TIMING.—Breaker contacts begn to separate when the piston entering power
