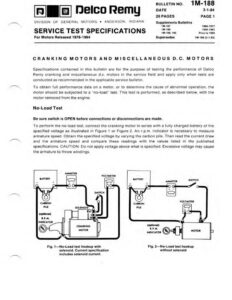

BULLETINNO. %IM-188 IN|Mie|PelcoRemy x st DIVISION OF GENERAL MOTORS e ANDERSON, INDIANA Supplements Bulletins 1M-187 1964-1977 SERVICE TEST SPECIFICATIONS 38.1 pica ae For Motors Released 1978-1984 Supersedes 1M-188 (3-1-83) CRANKING MOTORS AND MISCELLANEOUS D.C. MOTORS Specifications contained in this bulletin are for the purpose of testing the performance of Delco Remy cranking and miscellaneous d.c. motors in the service field and apply only when tests are conducted as recommended in the applicable service bulletin. To obtain full performance data on a motor, or to determine the cause of abnormal operation, the motor should be subjected to a “no-load” test. This test is performed, as described below, with the motor removed from the engine. No-Load Test Be sure switch is OPEN before connections or disconnections are made. To perform the no-load test, connect the cranking motor in series with a fully charged battery of the specified voltage as illustrated in Figure 1 or Figure 2. An r.p.m. indicator is necessary to measure armature speed. Obtain the specified voltage by varying the carbon pile. Then read the current draw and tne armature speed and compare these readings with the values listed in the published specifications. CAUTION: Do not apply voltage above what is specified. Excessive voltage may cause the armature to throw windings. VOLTMETER BATTERY CARBON PILE (optional) R.P.M. INDICATOR (optional) RPM. INDICATOR Fig. 1—No-Load test hookup with Fig. 2—No-Load test hookup solenoid. Current specification without solenoid includes solenoid current. BULLETINNO. 1IM-188 DATE 3-1-84 26 PAGES PAGE 2 MOTORS . Motor Model 6. Spec No. Anlasser Modell Spez. Nr. Modele demarreur Spec. No. Modelo arranques No. de especificacion . Series . No Load Test (includes solenoid current when applicable) Serie Versuch ohne Last (einsch!. Magnetschalterstrom, falls anwendbar) Series Test a vide (quand cela est applicable inclure le courant du solenoide) Serie pruebaon vacio (incluyendo la corriente de! interrupter electro magnetico si hay logar) Volts Min. Max. Min. Max. Amps. Amps. RPM RPM Volt Amp Amp U/Min U/Min * RSHviCee Aube Min. Max. Min. Max. Kundendienst Technische Information Bulletin de service Boletin de-servicio Tension Amps Amps RPM RPM Mini Maxi Mini Maxi . Rotation Viewing D.E. Drehrichtung Sens de Rotation (vu cote Bendix) Sentido de rotacion 4 4 5. 6 7. NO LOAD TEST (iNCLUDES SOLENOID CURRENT when applicable) Motor 2. 3. Service vowing Spec. Min. Max. Min. Max. Model Senes Type Bulletin DE No. Volts Amps Amps RPM RPM 1108227 (a) 1OMT 100 1M-151 CW 3589 10 70 110 6500 10700 1108228(a) 10MT 125 1M-151 CW 3592 10 60 90 6500 10500 1108229(a) 10MT 125 1M-151 cw 3592 10 60 90 6500 10500 1108230(a) 10MT 100 1M-1514 cw 3592 10 60 90 6500 10500 1108281(a) 10MT 1M-151 CW 3592 10 60 30 6500 10500 1108282(a) 10MT 100 1M-151 cw 3592 10 60 90 6500 10500 1108283(a) 10MT 101 1M-151 cw 3592 10 60 90 6500 10500 1108284(a) 1OMT 100 1M-151 CW 3592 10 60 90 6500 10500 1108285(a) 1OMT 125 1M-151 CW 3592 10 60 90 6500 10500 1108286(a) 1OMT 101 1M-151 CW 3592 10 60 90 6500 10500 1108287 (a) 10MT 125 1M-151 CW 3592 10 60 90 6500 10500 1108288(a) 10MT 100 1M-151 CW 3592 10 60 30 6500 10500 1108289(a) 10MT 125 1M-151 CW 3589 10 70 110 6500 10700 1108290(a) 10MT 100 1M-151 Cw 3592 10 60 90 6500 10500 1108291 (a) 10MT 100 1M-151 CCW 3592 10 60 90 6500 10500 1108292(a) 1OMT 100 1M-151 cw 3592 10 60 90 6500 10500 1108293(a) 10MT 100 1M-151 CW 3592 10 60 90 6500 10500 1108294(a) 10MT 101 1M-151 cw 3592 10 60 90 6500 10500 1108295(a) 10MT 125 1M-151 CW 3592 10 60 90 6500 10500 1108296(a) 1O0MT 100 1M-151 Cw 3592 10 60 90 6500 10500 1108297 (a) 1OMT 101 1M-151 CCW 3592 10 60 90 6500 10500 1108298(a) 10MT 125 1M-151 CW 3592 10 60 90 6500 10500 1108299(a) 1OMT 125 1M-151 CCW 3592 10 60 90 6500 10500 1109061 (a) 1OMT 101 1M-151 CW 3592 10 60 90 6500 10500 1109062(a) 10MT 101 1M-151 CW 3589 10 70 110 6500 10700 1109063(a) 1OMT 101 1M-151 CW 3563 10 70 110 6500 10700 1109064(a) 1OMT 101 1M-151 CW 3592 10 60 390 6500 10500 1109065(a) VOMT 101 1M-151 CW 3589 10 70 110 6500 10700 1109066(a) 10MT 101 1M-151 CW 3563 10 70 110 6500 10700 1109067 (a) 10MT 101 1M-151 cw 3589 10 70 110 6500 10700 1109068 (a) 1OMT 101 1M-154 CW 3563 10 70 110 6500 10700 1109069(a) 1OMT 101 1M-151 cw 3563 10 70 110 6500 10700 1109070(a) 1OMT 101 1M-151 CW 3589 10 70 110 6500 10700 1109072(a) 1OMT 101 1M-151 CW 3589 10 70 110 6500 10700 1109074(a) 10MT 101 1M-151 CW 3592 10 60 90 6500 10500 (a) Pinion Clearance—.25 mm to 3.56 mm (.010 in to .140 in)
