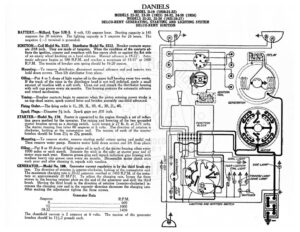

DANIELS MODEL D-19 (1920-21-22) MODELS 23-32, 23-38 (1923) 24-32, 24-38 (1924) MODELS 25-32, 25-38 (1925-26-27 DELCO-REMY GENERATING, STARTING AND LIGHTING SYSTEM DELCO-REMY IGNITION BATTERY.—Willard, Type SJR-5. 6 volt, 135 ampere hour. Starting capacity is 145 amperes for 20 minutes. The lighting capacity is 5 amperes for 26 hours. The negative (—) terminal is grounded. IGNITION.—Coil Model No. 2127. Distributor Mode] No. 5212, Breaker contacts separ- ate .018 inch. They are made of tungsten. When the condition of the contacts af- fects the ignition, remove and resurface with fine emery cloth or against the flat side of an emery wheel finishing on a hard oilstone. Manual advance is 18-22°. Auto- matic advance begins at 580 R.P.M. and reaches a maximum of 13-15° at 2400 R.P.M. The tension of breaker arm spring should be 16-20 ounces. Mounting.—To remove distributor, disconnect manual advance rod and remove two hold down screws. Then lift distributor from place. Oiling.—Put 4 or 5 drops of light engine oil in the upper ball besfing every two weeks. If the track of the rotor in the distributor head is not well polished, apply a small amount of vaseline with a soft cloth. Clean out and repack the distributor housing with soft cup grease every six months. This housing contains the automatic advance and retard mechanism. Timing.—Breaker contacts begin to separate when the piston entering power stroke is on top dead center, spark control lever and breaker assembly one-third advanced. Firing Order.—The firing order is 1L, 2R, 3L, IR, 4L, 3R, 2L, 4R. Spark Plugs.—Diameter 7% inch. Spark gaps are .031 inch. STARTER-—Model No. 170. Starter is connected to the engine through a set of reduc- tion gears meshed by the operator. The raising and lowering of the two grounded starter brushes serves as a starting switch. Lock torque is 27 lb. ft. at 2.75 volts. The starter running free takes 60 amperes at 6 volts. The direction of rotation is clockwise, looking at the commutator end. The tension of each of the stsarter brushes should be from 2!/4 to 234 pounds. Mounting.—To remove starter, remove starting pedal return spring and pedal rod. Then remove water pump. Remove motor hold down screws and lift from place. ac tery 8 or 10 drops of light engine oil in each of the starter bearing oilers every 1000 miles or each month. Saturate the wick in the oiler at starter gear end o motor once each year. Remove grease plug and repack reduction gear housing with medium heavy cup grease once every six months. Disassemble motor clutch once each year and after cleaning it, repack with vaseline. GENERATOR.—Model No. 169. Generator current regulation is by the third brush sys- tem. The direction of rotation is counter-clockwise, looking at the commutator end. The maximum charging rate is 20-22 amperes. reached at 1450 R.P.M. of the arma- ture or approximately 20 M.P.H. To adjust the charging rate, loosen the three screws in the bearing retainer plate on the end of the generator and shift the third brush. Moving the third brush in the direction of rotation (counter-clockwise) in- creases the charging rate and in the opposite direction decreases the charging rate. After making the adjustment tighten the three screws. Generator Data Amperes R.P.M. | ene eee ee 600 7 a, 1000 VBL 2 ona scccn cerca eesarosaiaccas ts cnasccascmmnerancornorrenst8 1450 The shuntfield current is 2 amperes at 6 volts. The tension of the generator brushes should be 114-2 pounds each. ‘ ‘ 1 { ‘ t / ‘ CBHI SIDE LIGHT DANIELS MODEL D-19 (1920-21-22) MODELS 23-32, 23-38 (1923) 24-32, 24-38 (1924) MODELS 25-32, 25-38 (1925-26-27) DELCO-REMY GENERATING, STARTING AND LIGHTING SYSTEM DELCO-REMY IGNITION bec P06 remove generator, drain radiator and remove. Then jack up front end of engine and remove all engine bolts. Remove front gear cover and water pump. Then remove generator mounting studs and lift generator from place. Oiling.—Put 5 or 6 drops of light engine oil in each of the generator oilers every two weeks. If the car is driven more than 500 miles in two weeks, the oiling must be done every 500 miles. RELAY.—Relay is mounted on the generator frame. Relay closes at 8 miles per hour or 500-550 R.P.M. of the armature, and opens at 6 miles per hour or 450-500 R.P.M. of the armature. Relay contacts separate .046 to .062 inch. Air gap between rela armature (moving member) and coil core is .040 inch, contacts closed. To a just relay, connect a voltmeter between the positive generator brush and ground. Then sony speed up the generator and adjust the relay spring tension until the relay contacts close when the voltmeter indicates 7.5 volts, Clean the relay contacts | drawing unglazed paper between them. If badly burned or pitted, resurface wi well worn No. 00 sandpaper. Remove all grit. Adjust before again putting into service. LAMPS.—Head lamps are 6-8 volt, 21 cp. Dimmer lamps are 6-8 volt, 4 cp. Dash and tail lamps are 6-8 volt, 2 cp. Dome lamp is 6-8 volt, 2 cp. Switch—C
