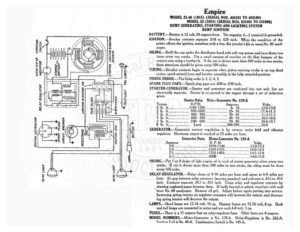

Empire MODEL 31-40 (1915) (SERIAL NOS. 405101 TO 406190) MODEL 33 (1915) (SERIAL NOS. 331001 TO 333300) REMY GENERATING, STARTING AND LIGHTING SYSTEM REMY IGNITION BATTERY.—Battery is 12 volt, 50 ampere-hour. The negative (—) terminal is grounded. s {GNITION.—Breaker contacts separate .018 to .020 inch. When the condition of the g 3 3 points affecis the ignition, resurface with a fine, flat jeweler’s file or worn No. 00 sand- 8 Na Ps paper. ae) g g OILING.—Refill the cup under the distributor head with soft cup grease and tua down two =$ turns every two weeks. Put a small amount of vaseline on the fiber bumper of the tS 36 contact arm using a toothpick. If the car is driven more than 500 miles in two weeks, S s g these attentions should be given every 500 miles. % S S TIMING.—Breaker contacts begin to separate when piston entering stroke is on top dead g y iS s center, spark control lever and breaker assembly in the fully retarded position. > FIRING ORDER.—The fring order is 1, 2, 4, 3. = 4 e KS SPARK PLUG GAPS.—Spark plug gaps are .028 to .030 inch. IS as STARTER-GENERATOR.—Starter and generator are combined into one unit, but are S FS electrically separate. Starter is couunected to the engine through a set of reduction S % J gears. & ba Ss Starter Data. Motov-Generator No. 129-A ES 2 c R.P.M. Amperes Volts RY # 4 fe cie eye Than oe AAS enna Bs 1, le scasisesscen com acaansnsS we re & fa Goes sal tcl one A-Tt. ~ .. 800- 900… ||| 11.3-11.5 & 600- 700.. a0. Go ncreneorsssenns..10.5-10.6 Ss * 500- 600 es OO) eessnissseesecnint .10.0-10.5 8 S Lock z ya —_ 10.0 § vz iS GENERATOR.—Generator current waiguieticat is by reverse series field and vibrator 8 & S regulator. Maximum output is reached at 15 miles per hour. iS > 5S < m Generator Data. Motor-Generator No. 129-A & Amperes R. P.M. FS 00.22% /1050-1140_. 5.022 Say / /_- 1200-1350... (fae Gn. 4 fi, 1250-1450... Te SE, Wi, ie Ad 000 OILING.—Put 5 or 6 drops of light engine oil in each of starter-generator oilers every two weeks, If car is driven more than 500 miles in two weeks, the oiling must be done every 500 miles. RELAY-REGULATOR.—Relay closes at 8-10 miles per hour and opens at 6-8 miles per hour. Air gap between relay armature (moving member) and coil core is .012 to .015 inch, Contacts separate .012 to .015 inch. Clean relay and regulator contacts by . drawing unglazed paper between them. If badly burned or pitted, resurface with well “worn No. 00 sandpaper. Remove all grit. Adjust before again putting into service. Increasing spring tension on regulator armature will increase the output, and decreas- ing spring tension will decrease the output. LAMPS.—Head lamps are 12-16 volt, 16 cp. Dimmer lamps are 12-16 volt, 6 cp. Dash and tail lamps are connected in series and are each 6-8 volt, 3 cp. FUSES.—There is a 15 ampere fuse on relay-regulator base. Other fuses are 4 ampere. MODEL NUMBERS.—Motor-Generator is No. 129-A. Relay-Regulator is No. 262-A. Tonition Coil is No. 49-A. Combination Switch is No. 145-A, HEAO LIGHT HERD LIGHT
