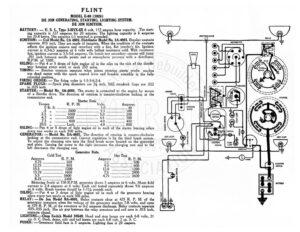

FLINT MODEL E-80 (1926) DE JON GENERATING, STARTING, LIGHTING SYSTEM. DE JON IGNITION. BATTERY: — U. S. L. Type 3-HVX-6X 6 volt, 117 ornare Bows capacity. The start- ing capacity is 127 amperes for 20 minutes. The lighting capacity is 5 amperes for 23.4 hours. The negative (-) terminal is grounded. IGNITION: — Coil Model N . CA 4001. Distributor Model No. 1A-4001. Breaker contacts separate .015 inch. They are made of tungsten. When the condition of the contaets affects the ignition remove and resurface with a fine, flat jeweler’s file. Ignition current is 6,3-6.5 amperes at 6 volts with ballast resistance cold. With resistance hot, ignition current is 3.5-3.6 amperes. On bench test secondary current will jump en ane > needle points and at atmospheric pressure with a distributor -P.M. of 1000. i ll OILING: — Put 4 or 5 drops of light engine oil in the oiler on the side of the distrib- utor housing every week or each 250 miles. TIMING: — Breaker contacts separate when piston entering power stroke reaches top dead center with the spark control lever and breaker assembly in the fully retarded position. FIRING ORDER: — The firing order is 1-5-3-6-2-4. aliag Baton — Spark plug diameters are 74 inch. SAE standard. Gaps are .022 to .U25 inch. STARTER: — Model No. SA-4001. The starter is connected to the engine by means of a Bendix drive. The direction of rotation is counter-clockwise looking at the commutator end. Torque. R Volts Amperes. OID: (ft, a ssaceneesesetes sescse messes as 5:0) 2p oF 40 ID igi tossseseele, BOO ssieoecileer cc bone Bae Eee © 100 ZS 3 reese 1600 20 DO |b eeccleccesenpe 200 Dy au pian F000 ob yds len Cee es I 300 y fo 600 de ectle Sc: YA jl ee Gee PR 400 20,0 $56 ees Locke 4.0.. UE 800 OILING: — Put 4 or 5 drops of light engine oil in each of the starter bearing oilers every two weeks or cate 500 miles miles, GENERATOR: — Model No. DA-4001. The direction of rotation is counter-clockwise looking at the commutator end. Current regulation is by the third brush system, To adjust the charging rate turn the third brush screw located on the generator end plate. Turning the screw to the right increases the charging rate and to the left decreases the charging rate. Generator Data Cold Test Hot Test R. P. M. Amperes Amperes P. M. iY Aare 500 9.0.9 8 800 12:0: 2! 1200 7. Sense en 2400 ry 2 3600 Ls tae 8.25 – — 2400 Motoring freely at 150 R.P.M. generator draws 5 amperes at 6 volts. Shunt field current is amperes at 6 volts. Each coil tested separately draws 9.6 amperes at 6 volts. Brush tension should be 1-114 pounds each. ; OILING: — Put 4 or 5 drops of light engine oil in each of the generator bearing oilers every two weeks or each 500 miles. RELAY: —De Jon Model RA-4001. Relay contacts close at 425 R. P. M. of the generator armature when the voltage of the generator reaches 7-8 volts, and open at 375 R. P. M. of the armature or 0-2 amperes discharge. pen contacts separate -025-.035 inch. The air gap between the relay armature and coil core is .015 inch, contacts closed. LIGHTING.—Clum Switch Model 10549. Head and stop lamps are each 6-8 volts, 21 SB. S. C, Dash, dome, side and tail lamps are each 6-8 volt, 2 cp. S. C. FUSES: — Generator field fuse is 5 amperes. Lighting fuse is 20 ampere. 5 TANCE inOZ= IGNITION COIL ————wy | | | eae | AL igi | i 4] UUW CONDENSER f Lj Gu =T } ~ Leow Atl SIDE LIGHT @ «all ©) HORN BUTTON ror | SUNCTION BLOCK DISTRIBUTOR —— —_— OXOROKOZOXO
