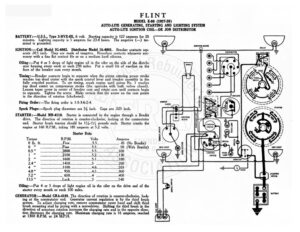

FLINT MODEL E-80 (1927-28) AUTO-LITE GENERATING, STARTING AND LIGHTING SYSTEM AUTO-LITE IGNITION COIL—DE JON DISTRIBUTOR BATTERY:—U.S.L., Type 3-HVX-6X, 6 volt. Starting capacity is 127 amperes for 20 minutes. Lighting capacity is 5 amperes for 23.4 hours. The negative (—) ter- minal is ground (9) IGNITION: —Coil Model I1G-4062. Distributor Model IA-4001. Breaker contacts sep- arate .015 inch. They are made of tungsten. Resurface contacts whenever nec- essary with a fine flat contact file or on a medium hard oilstone. Oiling:—Put 4 or 5 drops of light engine oil in the oiler on the side of the distrib- utor housing every week or each 250 miles. Put a small bit of vaseline on the face of the breaker cam every month. Timing:—Breaker contacts begin to separate when the piston entering power stroke reaches top dead center with the spark control lever and breaker assembly in the fully retarded position. To set timing, crank engine until piston No. | reaches top dead center on compression stroke (the upstroke with both valves closed). Loosen taper screw in center of breaker cam and rotate cam until contacts begin to separate. Tighten the screw. Make certain that the arrow on the cam points in the direction of rotation (clockwise). Firing Order:—The firing order is 1-5-3-6-2-4. Spark Plugs:—Spark plug diameters are 7% inch. Gaps are .025 inch. STARTER:—Model MN-4110. Starter is connected to the engine through a Bendix drive. The direction of rotation is counter-clockwise, looking at the commutator end. Starter brush tension should be 114-114 pounds each. Starter cranks the engine at 160 R.P.M., taking 180 amperes at 5.2 volts. Starter Data Torque R.P.M. Volts Amperes 0 1D, flee Bree c2-2 scssezsxcesectocces Ei Ee SE. 45 (No Bendix) OO Seen Biée=…5. = Senn, 🙂 EN 50 (With Bendix) re 2800.0… seeceoseeeeeoee La en a GY AD 100 To cpeteteenerrtices 2100 ae ees 52i.N 48 130 1 creer te 1600 See il feet women Ae 180 y Ae nee a Or 145 Oo ecccsece Ra Eh ers 200 4% f8 al aie. 1100: eS 46 Oe ES 265 4B eens +) | see 24.5 el tan eS 300 7 FY Aa te ea ater ee 650 Ae A rene eS, 400 V3 coxcesesssacsonaesccss Lock isccectesce ss [ieee irae te oes 540 Oiling:—Put 4 or 5 drops of light engine oil in the oiler on the drive end of the starter every month or each 100 miles. GENERATOR :—Model GRA-4101. The direction of rotation is counter-clockwise, look- ing at the commutator end. Generator current regulation is by the third brush system. To adjust charging rate, remove commutator cover band and shift third brush mounting stud by prying with a screwdriver. Shifting the third brush in the direction of armature rotation increases the charging rate and in the opposite direc- tion decreases the char: in, rate. Maximum charging rate is 16 amperes, reached 8 at 1300 R:P.M. or 24 M.P.H. (i) TAIL LIGHT FLINT MODEL E-80 (1927) AUTO-LITE GENERATING, STARTING AND LIGHTING SYSTEM AUTO-LITE IGNITION COIL — DE JON DISTRIBUTOR Generator Data Hot Test Amperes vi enerator draws 5 amperes at 6 volts. Shunt field oe. Tested separately each coil draws 9.6 amperes at 6 volts, Brush spring tension should be 114-114 pounds each. Oiling:Put 4 or 5 drops of light engine oil in each of the generator bearing oilers every two weeks or each 500 miles. RELAY :—Model CB-4007. Relay is mounted on the generator. Relay contacts close at 7.5 M.P.H. when the voltage of the generator reaches 6.4-7.5 volts and opens with a discharge current of .5-2.5 amperes. Contacts separate .025-.035 inch. Air gap between relay armature and coil core is .010-.030 inch, contacts closed. LIGHTING:—Clum Switch Model 10549. Head and stop lamps are each 6-8 volt, 21 cp. S.C. Dash, dome, tail and side lamps are each 6-8 volt, 2 cp. S.C. FUSES:—Generator field fuse is 5 amperes. Lighting fuse is 20 amperes.
