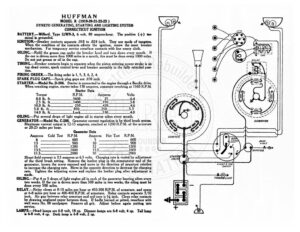

HUFFMAN MODEL R (1919-20-21-22-23 ) DYNETO GENERATING, STARTING AND LIGHTING SYSTEM CONNECTICUT IGNITION BATTERY.—Willard, Type SJWN-3, 6 volt, 80 ampere-hour. The positive (++) ter minal is grounde IGNITION.—Breaker contacts separate .018 to .024 inch. They are made of tungsten. en the condition of the contacts affects the ignition, renew the inner breaker mechanism. For temporary service resurface contacts with fine emery cloth. OILING.—Refill the grease cup under the breaker head and turn down every month. If the car is driven more than 1000 miles in a month, this must be done every 1000 miles. Do not put grease or oil in the cup. TIMING.—Breaker contacts begin to separate when the piston entering power stroke is on top dead center, spark control lever and breaker assembly in the fully retarded posi- tion. FIRING ORDER.—The fring order is 1, 5, 3, 6, 2, 4. SPARK PLUG GAPS.—Spark plug gaps are .030 inch. STARTER.—Model No. D-288. Starter is connected to the engine through a Bendix drive. When cranking engine, starter takes 130 amperes, armature revolving at 1500 R.P.M. Starter Data Torque R.P.M. Amperes Volts 0.0 Ib. ft.._____5600____/ BaF 25) fin 4 2.5 tb. ft 1400 SOL FAS 6 a 10.0 Ib. ft 250 0 eee aS 5.0 ib. fp C85 250 Fd 8 14.0.9. fe, Lock 590 Le AO OILING—Pit several drops of light engine oil in starter oilers every month. GENERATOR—Meodel No. C-288. Generator current regulation is by third brush system. Maximum current output is 12-15 amperes, reached at 1200 R.P.M. of the armature or 20-25 miles per hour. Generator Data Amperes Cold Test R.P.M. Amperes Hot Test R.P.M. Gi Jn5 21. P1600 5 Le Nee 608 (|e 10; Sib 908 5 _ 2000 12 ee NN 1200 135 _ 00 Le of ARG | || cere | | 10\_W_ A. 7000 Shunt field current is 3.5 amperes at 6.5 volts. Charging rate is varied by adjustment of the third brush setting. Remove the leather plug in the commutator end of the generator, loosen the screw exposed and move in the direction of armature rotation to increase the charging rate. Move in the opposite direction to decrease the charging rate. Tighten the adjusting screw and replace the leather plug after adjustment is made, OILING.—Put 4 or 5 drops of light engine oil in each of the generator bearing oilers every two weeks. If the car is driven more than 500 miles in two weeks, the oiling must be done every 500 miles. RELAY.—Relay closes at 8-10 miles per hour or 450-500 R-P.M. of armature, and opens at 6-8 miles per hour or 400-450 R.P.M. of armature. Relay contacts separate 3/32 inch. Air gap between relay armature and coil core is Y inch. Clean relay contacts by pawing Sogeeed paper between them. If badly burned or pitted, resurface with well worn No. 00 sandpaper. Remove all grit. Adjust before again putting into service. LAMPS.—Head lamps are 6-8 volt, 18 cp. Dimmer | are 6-8 volt, 4 Tail lam is 6-8 volt, 4.cp. Dash lamp is 6-8 volt, 2 cp. = — . TONM. LIGHT LIGH, SWITCH Lor ee, CAV LIGHT
