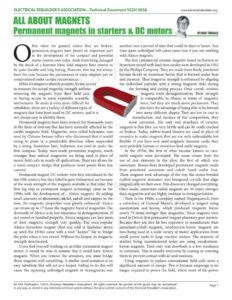

ELECTRICAL REBUILDER’S ASSOCIATION—Technical Document $S201505A www.electricalrebuilders.org ALL ABOUT MAGNETS Permanent magnets in starters & DC motors 4 ften taken for granted unless they are broken, permanent magnets have played an important part in the development of the compact and powerful starter motors seen today. Aside from being damaged by the shock of a hammer blow, field magnets have proven to be quite durable and long lasting. However, that has not always been the case, because the permanence of some magnets can be compromised under certain circumstances. While it’s simple to identify polarity, it’s not so easy to measure the actual magnetic strength without removing the magnets from their field case or having access to some expensive scientific instruments. To make it even more difficult for rebuilders, there are a variety of different types of magnets that have been used in DC motors, and it is not always easy to identify them. Permanent magnets have been around for thousands years in the form of iron ore that has been naturally affected by the earth’s magnetic field. Magnetite, once called lodestone, was used by Chinese fortune tellers who discovered that it would swing to point in a predictable direction when suspended by a string. Sometime later, lodestone was used to make the first compass. Today, man-made permanent magnets, much stronger than natural magnetite, are being used in place of motor field coils in nearly all applications. Their use allows for a more compact design that produces more power from less current. Permanent magnet DC motors were first introduced in the late 19th century, but they failed to gain widespread use because of the weak strength of the magnets available at that time. The first big step in permanent magnet technology came in the 1930s with the development of Alnico magnets. By adding small amounts of aluminum, nickel, cobalt and copper to the iron, the magnetic properties were greatly enhanced. Alnico can retain up to 17 times the magnetic force of magnetite. The downside of Alnico is its low resistance to demagnetization. If not stored or handled properly, Alnico magnets can lose most of their magnetic strength very quickly. The once-popular Alnico horseshoe magnet (that was sold at hardware stores up until the 1970s) came with a steel “keeper” bar to bridge the poles when it was stored. Without the keeper, its magnetic strength deteriorated. If you find yourself working on an older permanent magnet motor, it would be wise to assume that it could have Alnico magnets. When you remove the armature, you must bridge those magnets with something. A similar-sized armature is an easy substitute that will act as a keeper. Failing to do this will cause the opposing unbridged magnets to demagnetize one BY BOB THOMAS another over a period of time that could be days or hours. Any time spent unbridged will cause some loss if you are working with Alnico magnets. The first commercial ceramic magnets based on barium or strontium mixed with lead-iron oxides were developed in 1952 by the Phillips Company. They are made from finely powdered barium ferrite or strontium ferrite that is formed under heat and pressure. Their magnetic strength is enhanced by aligning the individual particles with a strong magnetic field during the forming and curing process. Once cured, ceramic magnets resist demagnetization. Their strength is comparable to Alnico in terms of magnetic force, but they are much more permanent. They also have the advantage of being able to be formed into many different shapes. They are low in cost to manufacture, and because of the composition, they resist corrosion. The only real drawback of ceramic magnets is that they are very brittle and can be easily cracked or broken. Today, rubber-based binders are used in place of ceramics to make magnets that are not only unbreakable but flexible. If you have ever used magnetic business cards, they were probably barium or strontium lead oxide magnets. In the 1970s, the first of what became known as rare- earth magnets were developed. The name comes from the use of rare elements in the alloy, the first of which was samarium. Researchers developed permanent magnets made from powdered samarium and cobalt fused under heat. These magnets took advantage of the way the atoms bonded (called magnetic domains) into hexagonal crystals that align magnetically on their own. This discovery changed everything. Once made, samarium-cobalt magnets are 50 times stronger than magnetite and are highly resistant to demagnetization. Then in the 1980s, a company named Magnequench, then a subsidiary of General Motors, developed a magnet using neodymium and boron, which produced magnetic forces nearly 75 times stronger than magnetite. These magnets were used in Delco’s first permanent magnet planetary gear starters. Because they are also far less expensive to manufacture than samarium-cobalt magnets, neodymium-boron magnets are now being used in a wide variety of motor applications from small power tools to large traction motors. The majority of starters being manufactured today are using neodymium- boron magnets. Their only real drawback is a low resistance to corrosion. That is usually overcome by coating or covering them to prevent contact with air and moisture. Using magnets to replace conventional field coils saves a significant amount of energy. This is because amperage is no longer required to power the field, where most of the power An ERA Publication. ©2015, Electrical Rebuilder’s Association. All rights reserved. No portion of the guide may be reproduced Page 1 in any way, or stored in any electronic retrieval system without the prior written consent of the Electrical Rebuilder’s Association.
