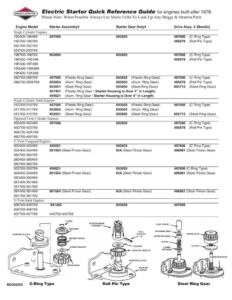

Electric Starter Quick Reference Guide for engines built after 1976. Please Note: When Possible Always Use Micro Fiche To Look Up Any Briggs & Stratton Parts BRIGGS & STRATTON Engine Model Starter Assembly# Starter Gear Only# Drive Assy. # (Bendix) Single Cylinder Engines 190400-196499 497595 693059 497606 (C Ring Type) 190700-195799 495878 (Roll Pin Type) 252700-252799 253700-253799 198700-198799 693054 693059 497606 (C Ring Type) 19E400-19E499 495878 (Roll Pin Type) 19F400-19F499 19G400-19G499 19K400-19K499 280700-289799 497595 (Plastic Ring Gear) 693058 (Plastic Ring Gear) 497606 (C Ring Type) 28A700-28W799 693054 (Alum. Ring Gear) 693059 (Alum. Ring Gear) 495878 (Roll Pin Type) 693551 (Steel Ring Gear) 693699 (Steel Ring Gear) 693713 (Steel Ring Gear) 497401 (Plastic Ring Gear / Starter Housing is Over 4” in Length) 499521 (Alum. Ring Gear / Starter Housing is Over 4” in Length) Single Cylinder Intek Engines 310700-310799 497595 (Plastic Ring Gear) 693058 (Plastic Ring Gear) 497606 (C Ring Type) 311700-311799 693054 (Alum. Ring Gear) 693059 (Alum. Ring Gear) 312700-312799 693551 (Steel Ring Gear) 693699 (Steel Ring Gear) 693713 (Steel Ring Gear) Opposed Twin Cylinder Engines TE 400400-422499 497596 693059 497606 (C Ring Type) 400700-422799 495878 (Roll Pin Type) 40A700-42A799 460700-460799 V-Twin Vanguard Engines 303400-303499 499521 693059 497606 (C Ring Type) 354400-354499 691564 (Steel Pinion Gear) N/A (Steel Pinion Gear) 496881 (Steel Pinion Gear) 350700-350799 380400-380499 380700-380799 303700-303799 499521 693059 497606 (C Ring Type) 304400-304499 691564 (Steel Pinion Gear) N/A (Steel Pinion Gear) 496881 (Steel Pinion Gear) 350400-350499 351400-351499 351700-351799 381400-381499 691564 (Steel Pinion Gear) N/A (Steel Pinion Gear) 496881 (Steel Pinion Gear) 381700-381799 V-Twin Intek Engines 405700-405799 691262 693058 497606 406700-406799 407700-407799 445700-445799 STARTER DRIVE DUST COVER ASSEMBLY —p Sf RETAINING RING .. SD ROLL PIN-SLOT PINION GEAR aad UP UPPER RETAINER ~&S SPRING STARTER CLUTCH CLUTCH LOWER RETAINER PINION GEAR Mo300025 C-Ring Type Roll Pin Type Steel Ring Gear ELECTRIC STARTER KITS QUICK REFERENCE Engine Model Starter Assembly # Single Cylinder Engines 190400-194499 190700-195799 252700-252799 253700-253799 194700-198799 195400-195799 19E400-19E499 19F400-19F499 19G400-19G499 19K400-19K499 280700-289799 28A700-28W799 497595 (Plastic Ring Gear) 693054 (Alum. Ring Gear) 693551 (Steel Ring Gear) Starter Gear Only # 693058 (Plastic Ring Gear) 693059 (Alum. Ring Gear) 693713 (Steel Ring Gear) Drive Assy. # (Bendix) 497606 (C Ring Type) 495878 (Roll Pin Type) 693699 (Steel Ring Gear) 497401 (Plastic Ring Gear/Starter Housing is over 4″ in Length) 499521 (Alum. Ring Gear/Starter Housing is over 4″ in Length)) 693552 (Steel Ring Gear/Starter Housing is over 4″ in Length)) Single Cylinder Intek Engines 310700-310799 311700-311799 312700-312799 497595 (Plastic Ring Gear) 693054 (Alum. Ring Gear) 693551 (Steel Ring Gear) Opposed Twin Cylinder Engines 400400-422499 400700-422799 42A700-42E799 406700-461799 497596 (3 5/8″ Housing) 498148 (4 3/8″ Housing) V-Twin Vanguard Engines 303400-303499 354400-354499 350700-350799 380400-381499 380700-381799 303700-303799 304400-304499 350400-350499 351400-351499 351700-351799 499521 691564 (Steel Pinion Gear) 499521 691564 (Steel Pinion Gear) V-Twin Intek Engines 405700-405799 406700-406799 407700-407799 445700-445799 691262 693058 (Plastic Ring Gear) 693059 (Alum. Ring Gear) 693713 (Steel Ring Gear) 693059 693059 N/A (Steel Pinion Gear) 693059 N/A (Steel Pinion Gear) 693058 497606 (C Ring Type) 693699 (Steel Ring Gear) 497606 (C Ring Type) 495878 (Roll Pin Type) 496181 (Steel Pinion Gear) 497606 (C Ring Type) 496881 (Steel Pinion Gear) 497606 (C Ring Type) 496881 (Steel Pinion Gear) 497606 SERVICE BULLETIN TO ALL AUTHORIZED SERVICE ACCOUNTS No. 674 DATE 10/98 SUBJECT Electric Starter/Pinion Gear FILE IN Bulletin Binder (Replaces Service Bulletins No. 670 dated 3/2/98 and 4/98) ENGINE Model Series 161400 thru 461700 (with aluminum or plastic flywheel ring gears) All starter motors on subject Model Series have previously been serviced with one pinion gear, P/N 280104. Starter motors previously serviced by pinion gear 280104 now require one of two pinion gears, depending on flywheel ring gear material. To service starter motors on engines equipped with PLASTIC ring gears, use pinion gear 693058 (bulk pack P/N 4152 – 5 pieces), Fig. 1. To service starter motors on engines equipped with ALUMINUM ring gears, continue to use pinion gear 280104, 280104S or 693059 (bulk pack P/N 4155 or 4114 – 5 pieces), Fig. 2. ROT BEVELED 4/ 4 TEETH Use P/N 693058 with PLASTIC ring gears Use P/N 280104, 280104S or 693059 with ALUMINUM (bulk pack P/N 4152 – 5 pieces) ring gears (bulk pack P/N 4114 or 4155 – 5 pieces) Fig. 1 Fig. 2 BRIGGS & STRATTON CORPORATION Distribution Sales & Service Division
