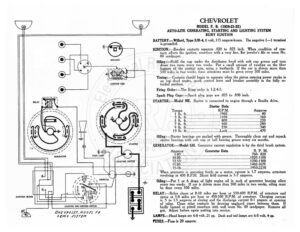

CHEVROLET MODEL F. B. (1920-21-22) AUTO-LITE GENERATING, STARTING AND LIGHTING SYSTEM REMY IGNITION BATTERY.—Willard, Type SJR-4, 6 volt, 115 ampere-hours. The negative (—) terminal is grounded. IGNITION :—Breaker contacts separate .020 to .025 inch. When condition of con- tacts affects the ignition, resurface with a very fine, flat jeweler’s file or worn No. 00. sandpaper. Oiling:—Refill the cup under the distributor head with soft cup grease and turn down two turns every two weeks. Put a small amount of vaseline on the fiber bumper of the contact arm, using a toothpick. If the car is driven more than 500 miles in two weeks, these attentions must be given every 500 miles. Timing:—Contacts should begin to separate when the pace entering power stroke is on top dead center, spark control lever and breaker assembly in the fully re- tarded position. Firing Order:—The firing order is 1-2-4-3, F Spark Plug Gaps:—Spark plug gaps are .025 to .030 inch. STARTER:—Model ME. Starter is connected to engine through a Bendix drive. Starter Data Torque R.P.M. Amperes te t | oo 1960 80 3 Ib. Ve…) A 2 Si UB. Fea. dels ncncccscsssdsetvecence 9 Ib. ft… mi 1s-ibo- fe. f 7… Oiling: Starter bearings are packed with grease. Thoroughly clean out and repack starter bearings with soft cup or ball bearing grease every six months. GENERATOR:—Model GH. Generator current regulation is by the third brush system. Amperes Generator Data R. P. M. 5 Oa ingest foenenennseserecenernsevesecnsnenenssentensecnstensonns 760- 8 NN ss ef ss orrecrar i aie en eee rae 1020-1100 TQS ORF .cecvencenenevencerecureceevecensesessesncesnenenenene 1200-130 1p, 1 REPL elite cna OO OU 1460-1675 [Fol «eal Tr ee ee ere ere er ree tereees cesarean 1950-2250 When generator is operating freely as a motor, current is 1.7 amperes, armature revolving at 450 R.P.M. Shunt field current is 1-7 amperes. Oiling:—Put 5 or 6 drops of light engine oil in each of generator bearing oilers every two weeks. If car is driven more than 500 miles in two weeks, oiling must be done every 500 miles. RELAY:—Relay closes at 8-10 miles per hour or 550-600 R.P.M. of armature and opens at 5-8 miles per hour or 450-500 R.P.M. of armature. Charging current is .5 to 1.5 amperes at closing and the discharge current 0-1 ampere at opening of relay. Clean relay contacts by drawing unglazed paper between them. le 6 badly burned or pitted resurface with well worn’No. 00 sandpaper. Remove all d CHEVROLET. MOOEL FB grit. Adjust before again putting into service. (@” REMY SYSTEM LAMPS.—Head lamps are 6-8 volt, 21 ep. Dash and tail lamps are 6-8 volt, 4 cp. PUSES.—Fuse is 20 ampere.
