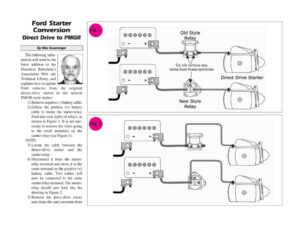

Ford Starter Conversion Direct Drive to PMGR Old Style By Wes Grueninger | The following infor- = mation will soon be the a latest addition to the} (| «= = Do not remove an Electrical Rebuilder’s nm | wires from these tenrinals Association Web site gits, Technical Library, and explains how to update Ford vehicles from the original direct-drive starter to the newest PMGR-style starter. 1) Remove negative (-) battery cable. New Style 2) Follow the positive (+) battery Relay cable to locate the starter-relay. Ford uses two styles of relays, as shown in Figure 1. It is not nec- essary to remove the wires going to the small terminals on the SeOTee starter relay (see Figure 1). NOTE: 3) Locate the cable between the direct-drive starter and _ the starter-relay. 4) Disconnect it from the starter- relay terminal and move it to the same terminal as the positive (+) battery cable. Two cables will now be connected to the same starter-relay terminal. The starter- relay should now look like the drawing in Figure 2. 5) Remove the direct-drive starter and clean dirt and corrosion from
