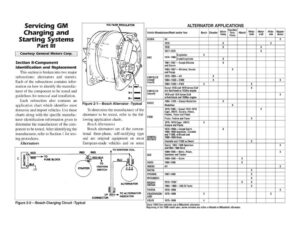

Servicing GM Charging and Starting Systems Part Ill Courtesy General Motors Corp. Section Il-Component Identification and Replacement This section is broken into two major subsections: alternators and _ starters. Each of the subsections contains infor- mation on how to identify the manufac- turer of the component to be tested and guidelines for removal and installation. Each subsection also contains an application chart which identifies most domestic and import vehicles. Use these charts along with the specific manufac- turer identification information given to determine the manufacturer of the com- ponent to be tested. After identifying the manufacturer, refer to Section 1 for test- ing procedures. Alternators VOLTAGE REGULATOR B+ Figure 2-1—Bosch Alternator -Typical To determine the manufacturer of the alternator to be tested, refer to the fol- lowing application charts. Bosch Alternators Bosch alternators are of the conven- tional three-phase, self-rectifying type and are original equipment on most European-made vehicles and on some TO FUSE BLOCK TO IGNITION COIL ALTERNATOR TO ALTERNATOR vee INDICATOR CONNECTOR Figure 2-2—Bosch Charging Circuit -Typical ALTERNATOR APPLICATIONS Duceiller/ . . j Delco- ic. ‘zach; | Mitsu- | Motor- | Moto- | Nippon- Vehicle Manufacturer/Model and/or Year Bosch |Chrysler Remy Fars. Hitachi hishi craft rola | denso ACURA All X 1975 X X 1976 X xX 1977-1978 xX 4979-1980 8 cylinder X AMC “1980 V7 and 6 cylinder X 1981-1987 — Except Alliance X and Encore 1983-1987— Alliance, Encore X and Fuego CHRYSLER 1975-1983 —All X (except 1984-1990— RWD X X import) 1984-1990— FWD X X Except 1978 and 1979 Arrow/Colt X CHRYSLER w/o hatchback w/1600cc engine (import) 1978 and 1979 Arrow/Colt X w/hatchback and 1600cc engine EAGLE 1984-1990— Except Medallion X Medallion X 1975-1990 —Except 1975-1978 xX Capri, XR4TI, Scorpio, Fiesta, Festiva, Tracer and Probe FORD Probe, Festiva and Tracer X 1975-1978 Capri, XR4TI, X Scorpio and Fiesta 1975-1990—Except Sprint, xX 1985-1988 Spectrum, Chevette and T1000, w/Diesel and GENERAL 1986-1988 Nova Chevette and T1000 w/Diesel X Sprint, 1985-1988 Spectrum X and1986-1988 Nova 1989-1990—-Metro, Prism, xX GEO Spectrum and Tracker 1989-1990 —Storm xX ISUZU 1982-1990 xX HONDA All’ X MAZDA xX HYUNDAI 1987-1990 xX MITSUBISHI X NISSAN/ 1975-1990? X X DATSUN 1984 -1988—300 ZX Turbo X TOYOTA 1975-1990 X VOLKSWAGEN/ | 1975-1990 X X AUDI VOLVO 1975-1990 X ‘Some 1989 Civic vehicles use a Mitsubishi alternator. *Beginning in the 1989 model year, some vehicles use either a Hitachi or Mitsubishi alternator.
