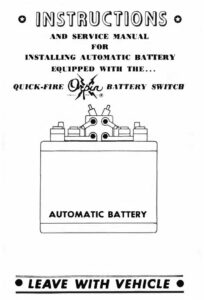

°o INSTRUCTIONS AND SERVICE MANUAL FOR INSTALLING AUTOMATIC BATTERY EQUIPPED WITH THE… QUICK-FIRE Oke BATTERY SWITCH AUTOMATIC BATTERY @ LEAVE WITH VEHICLE @ INDEX TO WIRING INSTRUCTIONS FOR AMERICAN AUTOMOBILES ALLSTATE HUDSON 1951-54 Inst. No. 2 1946-55 Inst. No. 3 BUICK KAISER 1946-50 Inst. No. 4 1947-54 Inst. No. 3 1951-52 Inst. No. 10 ; LINCOLN 1953 (Special!) Inst. No. 10 1946-50 Inst. No. 2 CADILLAC 1951-55 Inst. No. 3 1946-49 Inst. No. 4 MERCURY 1950-52 Inst. No. 1 1946-51 Inst. No. 2 CHEVROLET 1952-55 Inst. No. 3 1946-48 Inst. No. 8 NASH 1949-54 inst. No. 1 ee ery ee CHRYSLER OLDSMOBILE 1946-50 Inst. No. 12 1951-54 Inst. No. 9 wees Ire Non 1949-52 Inst. No. 1 CROSLEY 1946-52 Inst. No. 3 EE KeRe 1946-54 Inst. No. 3 DESOTO 1946-54 (Custom) Inst. 1946-50 Inst. No. 12 No. 12 1951-55 Inst. No. 7 or 9 PLYMOUTH DODGE 1946-55 No. 3 1946-55 Inst. No. 3 PONTIAC 9946-50 Inst. No. 2 Pe seas Bors 1951-55 Inst. No. 3 Usain 51 NEO FRAZER STUDEBAKER 1947-51 Inst. No. 3 1946-55 Inst. No. 2 HENRY J WILLYS 1951-54 Inst. No. 2 Inst. No. 5 or 8 NOTICE There is a wiring diagram in this book for every possible installation. If not listed above, check equipment and refer to instruction sheet index inside back cover. FOREWORD Please read before attempting to install an automatic battery. READING TIME 2 MINUTES The automatic battery has been developed through years of expert engineering and heavy duty testing. If installed prop- erly and all other electrical equipment on the vehicle is maintained in good order, the automatic battery should g:ve you years of trouble free service. Before installing the au- tomatic battery, we would like to make the following sug- gestions. 1. Have your service station start your vehicle several times with a regular 12 volt battery. Be sure all lights, radio, etc. are off for this test only. If the starter turns well and the engine starts readily, you can expect the automatc battery to give you the same results. 2. If you are a person who is consistently bothered by a dead (discharged) battery, it is usually caused by only one reason; you are taking more electricity out of the storage battery than vour generator is putting back in the storage battery. You must find out why you are tak- ing too much out; such as shorted wiring, worn out drag- ging starter, radio left on. etc. OR you must find out why you are not putting enough electricity in; such as poor wiring connections, faulty generator, faulty regulator, short run driving, etc. The automatic battery will not cure this situation. 3. Make sure the battery hold-down is installed properly and battery is held securely in place. Bolts should he snug but not tightened excessively with wrench. 4. Be sure to read cautions on back cover. 5. Have your voltage regulator checked to the vehicle manufacturers specifications anytime you install a bat- tery, automatic or otherwise. 6. Make sure any wiring splices are soldered properly. 7. Be sure to use the correct wiring diagram for the vehicle. 8. Don’t be misled! Installations are quite simple when the instructions are read and followed. (15 to 45 minutes) 9. In all installations you will notice instructions to remove all car body feed wires at the end of the battery cable on the starter switch and connect to the battery switch. In the diagram it is shown as one wire. It could be one, two, or three wires. In any event re- move ail of them but the battery cable. 10. If after installing an automatic battery, you should ever experience starting trouble again, years of ex- perience has shown that in 99 cases out of 100 it is vehicle equipment trouble beyond the battery. Consult the service section carefully. 11. After installation has been completed, coat all switch and battery connections with a good corrosion preventative. 12. If your automatic battery ever needs to be charged, follow directions on page 23. USE 6 VOLT CHARGER ONLY. 13. If your automatic battery ever becomes discharged and it is necessary to use a booster battery, follow di rections on page 22. NEVER LEAVE 12 VOLT BOOSTER BATTERY CONNECTED TO YOUR 6 VOLT AUTOMATIC BATTERY FOR MORE THAN A FEW SECONDS AT A TIME. 14. AFTER READING THE INSTRUCTIONS THOROUGHLY, SHOULD YOU HAVE ANY QUESTIONS OR NEED HELP IN PROPERLY INSTALLING OUR PRODUCT, WE RECOMMEND THAT YOU CONTACT A QUALIFIED AUTO ELECTRICIAN IN YOUR AREA. _ — ee w . How to charge the automatic battery NHOCOMD 3 QUBwW WY CONTENTS Page Number Index to wiring instructions (American Automobiles) ……..0.0..0…0…2e… Inside Front Cover . How to use this service manual and instruction OOK NEG” sccescccts cae: age. Sib sncc ec OER – -s mewawsssncceiwas…-.. 2 wed : How the automatic battery works…………..000……. . Instruction sheets Nos. 1 through 12….6 through 7 . How the Orpin series-parallel switch works…….. 18 . How to install the Orpin series-parallel switch on automatic battery…………………-< ae How to install the special automatic ‘battery | aXe) Cc re (0), 2 0 a Instructions to User. .......000..0..0.0..0..cecee eee i How to Use 12 Volt Booster Battery............. Service Section.. .23 through 28 Index to wiring instructions. (Trucks, Tractors, Boats, and Commercial equip- 19 0X2 0) a aie Inside Back Cover . How to temporarily replace the automatic battery with a regular battery without major wiring changes..............2..........-+- Outside Back Cover
