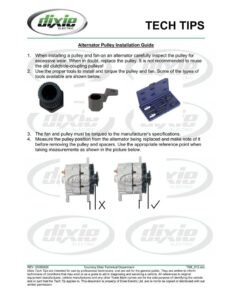

_ chiwia | & | | { & | anes / TECH TIPS Alternator Pulley Installation Guide 1. When installing a pulley and fan on an alternator carefully inspect the pulley for excessive wear. When in doubt, replace the pulley. It is not recommended to reuse the old clutch/de-coupling pulleys! 2. Use the proper tools to install and torque the pulley and fan. Some of the types of tools available are shown below. enr & 3. The fan and pulley must be torqued to the manufacturer’s specifications. 4. Measure the pulley position from the alternator being replaced and make note of it before removing the pulley and spacers. Use the appropriate reference point when taking measurements as shown in the picture below. REV: 20090820 Courtesy Dixie Technical Department TSB_012.doc Dixie Tech Tips are intended for use by professional technicians, and are not for the general public. They are written to inform technicians of conditions that may exist or as a guide to aid in diagnosing and servicing a vehicle. All references to original equipment manufactures, vehicle manufactures and any other Trade Mark names are for the sole purpose of identifying the vehicle and or part that the Tech Tip applies to. This document is property of Dixie Electric Ltd. and is not to be copied or distributed with out written permission.
