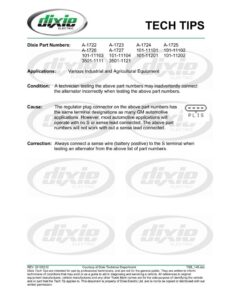

“dixie verse gy TECH TIPS Dixie Part Numbers: A-1722 A-1723 A-1724 A-1725 A-1726 A-1727 101-11101 101-11102 101-11103 101-11104 101-11201 101-11202 3501-1111 3501-1121 Applications: Various Industrial and Agricultural Equipment Condition: A technician testing the above part numbers may inadvertently connect the alternator incorrectly when testing the above part numbers. Cause: The regulator plug connector on the above part numbers has the same terminal designations as many GM automotive applications. However, most automotive applications will operate with no S or sense lead connected. The above part numbers will not work with out a sense lead connected. Correction: Always connect a sense wire (battery positive) to the S terminal when testing an alternator from the above list of part numbers. REV: 20100212 Courtesy of Dixie Technical Department TSB_146.doc Dixie Tech Tips are intended for use by professional technicians, and are not for the general public. They are written to inform technicians of conditions that may exist or as a guide to aid in diagnosing and servicing a vehicle. All references to original equipment manufactures, vehicle manufactures and any other Trade Mark names are for the sole purpose of identifying the vehicle and or part that the Tech Tip applies to. This document is property of Dixie Electric Ltd. and is not to be copied or distributed with out written permission.
