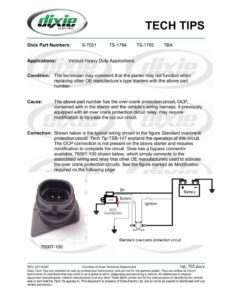

chliwia | & | [| { & | oNeer J TECH TIPS Dixie Part Numbers: S-7051 TS-1794 TS-1795 TBA Applications: Various Heavy Duty Applications Condition: The technician may comment that the starter may not function when replacing other OE manufacture’s type starters with the above part number. Cause: The above part number has the over-crank protection circuit, OCP, contained with in the starter and the vehicle’s wiring harness, if previously equipped with an over crank protection circuit relay, may require modification to by-pass the cut out circuit. Correction: Shown below is the typical wiring shown in the figure Standard overcrank protection circuit. Tech Tip TSB-147 explains the operation of this circuit. The OCP connection is not present on the above starter and requires modification to complete the circuit. Dixie has a bypass connector available, 76007-100 shown below, which simply connects to the associated wiring and relay that other OE manufacturers used to activate the over crank protection circuits. See the figure marked as Modification required on the following page. Connection Standard overcrank protection circuit 76007-100 REV: 20110323 Courtesy of Dixie Technical Department TSB_703.docx Dixie Tech Tips are intended for use by professional technicians, and are not for the general public. They are written to inform technicians of conditions that may exist or as a guide to aid in diagnosing and servicing a vehicle. All references to original equipment manufactures, vehicle manufactures and any other Trade Mark names are for the sole purpose of identifying the vehicle and or part that the Tech Tip applies to. This document is property of Dixie Electric Ltd. and is not to be copied or distributed with out written permission.
