Cole 1923-26 Model 890

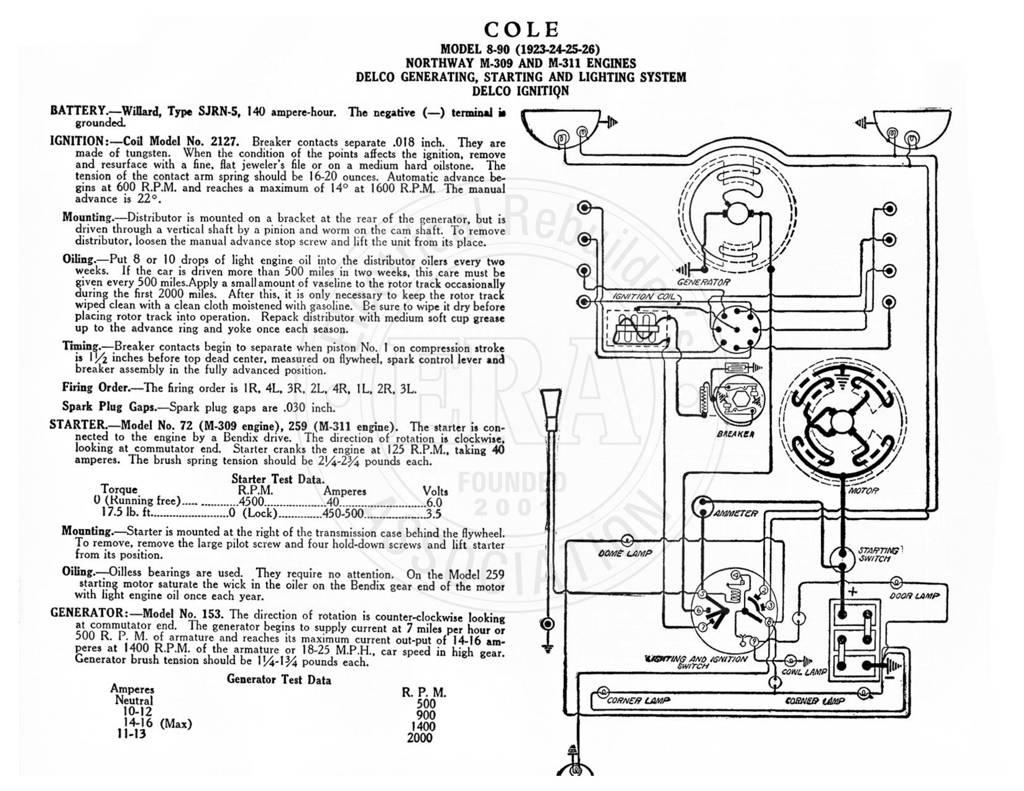

COLE MODEL 8-90 (1923-24-25-26) NORTHWAY M-309 AND M-311 ENGINES DELCO GENERATING, STARTING AND LIGHTING SYSTEM DELCO IGNITION BATTERY.—Willard, Type SJRN-5, 140 ampere-hour. The negative (—) terminal is ground IGNITION: —Coil Model No. 2127. Breaker contacts separate .018 inch. They are made of tungsten. When the condition of the points affects the ignition, remove and resurface with a fine, flat jeweler’s file or on a medium hard oilstone. The tension of the contact arm spring should be 16-20 ounces. Automatic advance be- gins at 600 R.P.M. and reaches a maximum of 14° at 1600 R.P.M. The manual advance is 22°. Mounting.—Distributor is mounted on a bracket at the rear of the generator, but is driven through a vertical shaft by a
