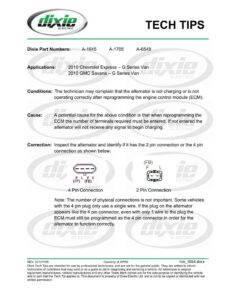

“dixie verse gy TECH TIPS Dixie Part Numbers: A-1645 A-1705 A-6548 Applications: 2010 Chevrolet Express — G Series Van 2010 GMC Savana — G Series Van Conditions: The technician may complain that the alternator is not charging or is not operating correctly after reprogramming the engine control module (ECM). Cause: A potential cause for the above condition is that when reprogramming the ECM the number of terminals required must be entered. If not entered the alternator will not receive any signal to begin charging. Correction: Inspect the alternator and identify if it has the 2 pin connection or the 4 pin connection as shown below: (FB) > ae! , PLeFEs (ST) (FB) 4 Pin Connection 2 Pin Connection Note: The number of physical connections is not important. Some vehicles with the 4 pin plug only use a single wire. If the plug on the alternator appears like the 4 pin connector, even with only 1 wire to the plug the ECM must still be programmed as the 4 pin connector in order for the alternator to function correctly. REV: 20121109 Courtesy of APRA TSB_1064.docx Dixie Tech Tips are intended for use by professional technicians, and are not for the general public. They are written to inform technicians of conditions that may exist or as a guide to aid in diagnosing and servicing a vehicle. All references to original equipment manufactures, vehicle manufactures and any other Trade Mark names are for the sole purpose of identifying the vehicle and or part that the Tech Tip applies to. This document is property of Dixie Electric Ltd. and is not to be copied or distributed with out written permission.
