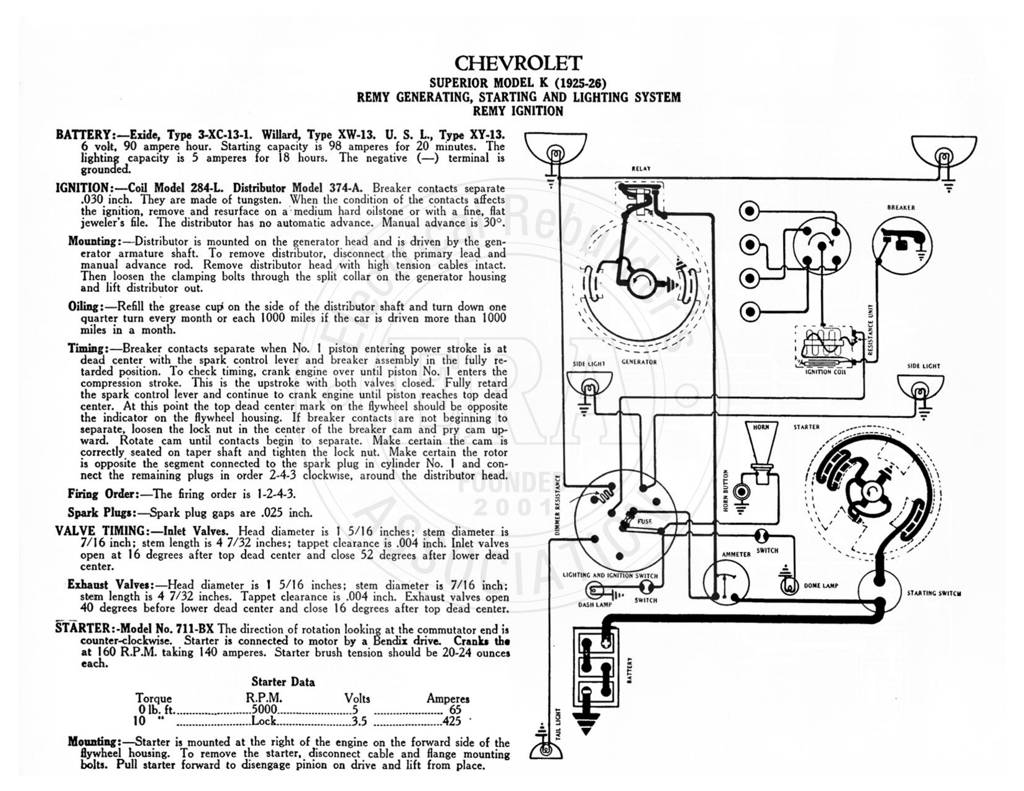

Chevrolet 1925-26 Superior Model K
CHEVROLET SUPERIOR MODEL K (1925-26) REMY GENERATING, STARTING AND LIGHTING SYSTEM REMY IGNITION BATTERY :—Exide, Type 3-XC-13-1. Willard, Type XW-13. U. S. L., Type XY-13. 6 volt, 90 ampere hour. Starting capacity is 98 amperes for 20 minutes. The lighting capacity is 5 amperes for 18 hours. The negative (—) terminal is grounde IGNITION: —Coil Model 284-L. Distributor Model 374-A. Breaker contacts separate .030 inch. They are made of tungsten. When the condition of the contacts affects the ignition, remove and resurface on a‘medium hard oilstone or with a fine, flat jeweler’s file. The distributor has no automatic advance. Manual advance is 30°. Mounting :—Distributor is mounted on the generator head and is driven by the gen- erator armature shaft.

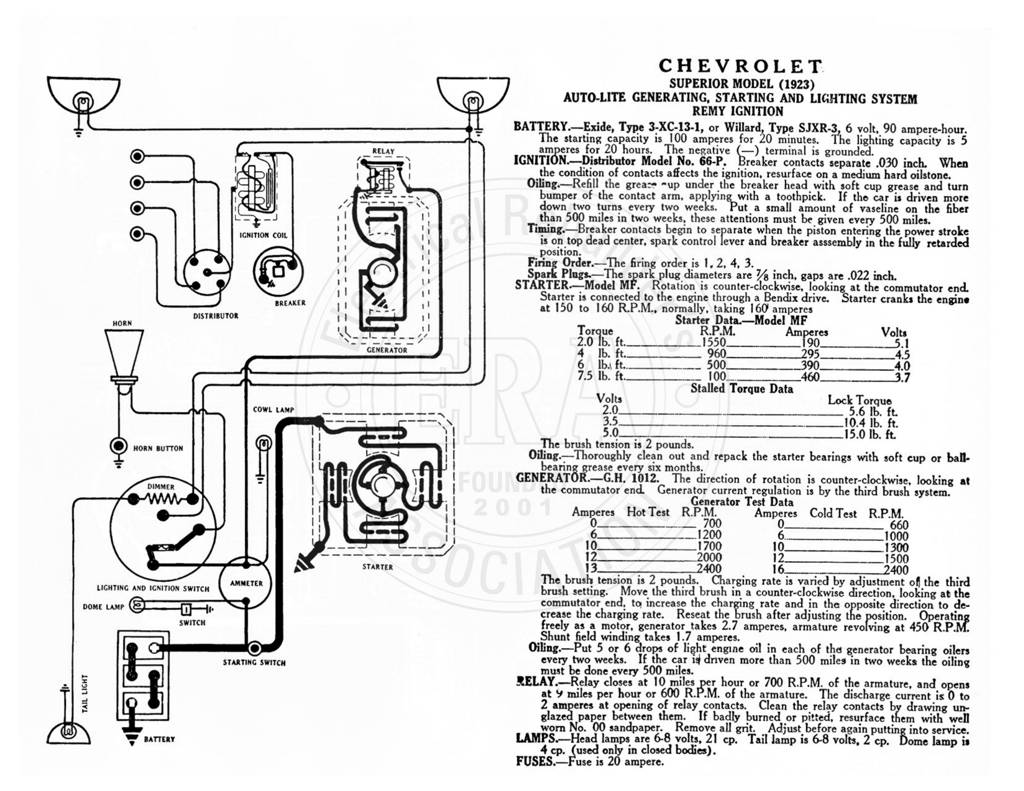

Chevrolet 1923 Superior
© ® @® © ! IGNITION COIL ox BREAKER DISTRIBUTOR LIGHTING AND IGNITION SWITCH DOME LAMP (=) on SWITCH TAIL LIGHT y BATTERY STARTING SWITCH STARTER CHEVROLET SUPERIOR MODEL (1923) @) AUTO-LITE GENERATING, STARTING AND LIGHTING SYSTEM i REMY IGNITION BATTERY.—Exide, Type 3-XC-13-1, or Willard, Type SJXR-3, 6 volt, 90 ampere-hour. he starting capacity is 100 amperes for 20 minutes. The lighting capacity is 5 amperes for 20 hours. The negative (—) terminal is grounded. IGNITION.—-Distributor Model No. 66-P, Breaker contacts separate .030 inch. When the condition of contacts affects the ignition, resurface on a medium hard oilstone. Oiling.—Refill the grease ~up under the breaker head with soft cup grease and turn bumper of the contact arm, applying with a

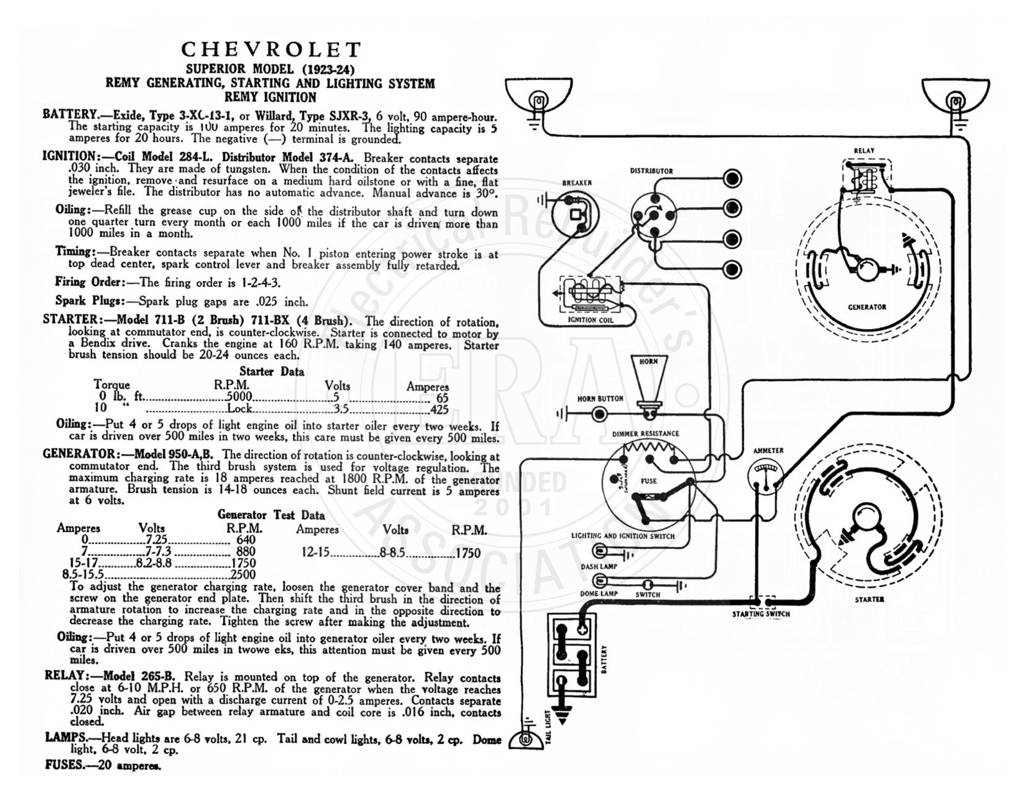

Chevrolet 1923-24 Superior
CHEVROLET SUPERIOR MODEL (1923-24) REMY GENERATING, STARTING AND LIGHTING SYSTEM REMY IGNITION (7) SATTERY.—Exide, Type 3-XC-13-1, or Willard, Type SJXR-3, 6 volt, 90 ampere-hour. c The starting capacity is 10U amperes for 0 ‘minutes. The li hting capacity is 5 i amperes for 20 hours. The negative (—) terminal is etiainiled IGNITION :—Coil Model 284-L. Distributor Model 374-A. Breaker contacts separate FA inch. They are made of tungsten. When the condition of the contacts affects DISTRIBUTOR the ignition, remove and resurface on a medium hard oilstone or with a fine, flat BREAKER jeweler’s file. The distributor has no automatic advance. Manual advance is 30°, | .. Oiling:—Refill the grease cup on the side of the distributor shaft and turn down

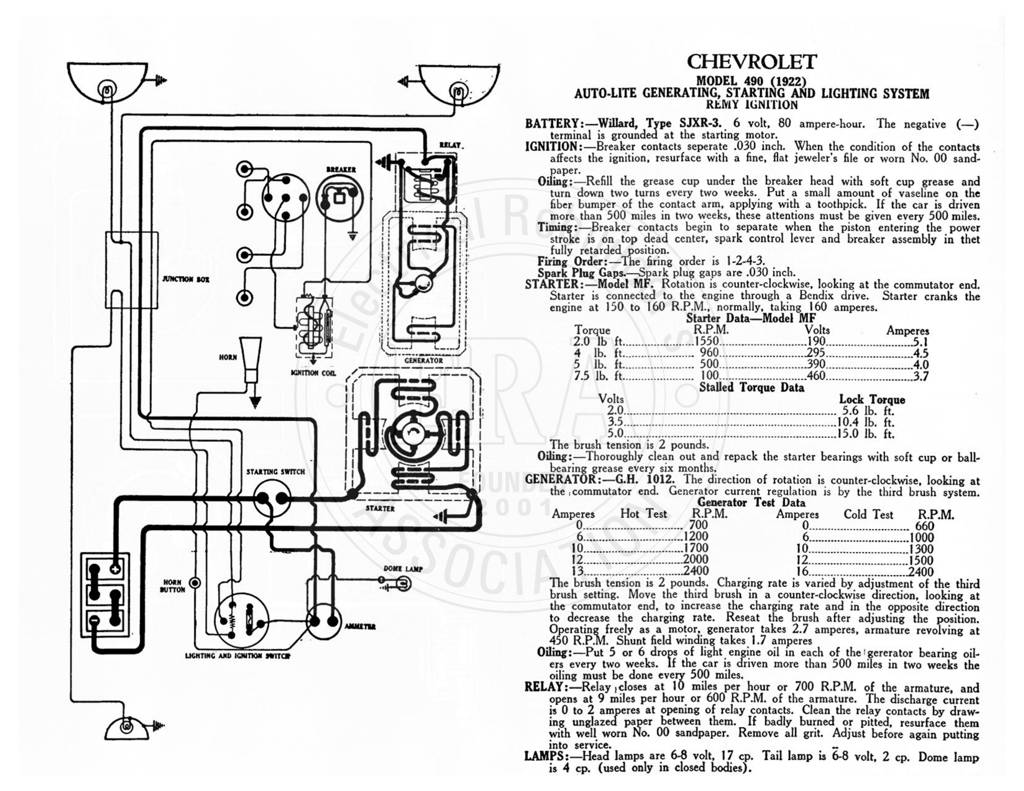

Chevrolet 1922 Model 490
| G ae DEES 2a ! are : : ; 1300 2000 rz) oe . f f 8 HORN Lr ae ae : : x) § 5 , to decrease the charging rate. Reseat the brush after adjusting the ition. Merran Operating freely as a motor, generator takes 2.7 amperes, armature revolving at 450 RPM. Shunt field winding takes 1.7 amperes LIGHTING AND IGNITION SWITCH CHEVROLET MODEL 490 areas () AUTO-LITE GENERATING, STARTING AND LIGHTING SYSTEM o REMY IGNITION BATTERY :—Willard, Type SJXR-3. 6 volt, 80 ampere-hour. The negative (—) terminal is grounded at the starting motor. IGNITION: —Breaker contacts seperate .030 inch. When the condition of the contacts affects the ignition, resurface with a fine, flat jeweler’s file or

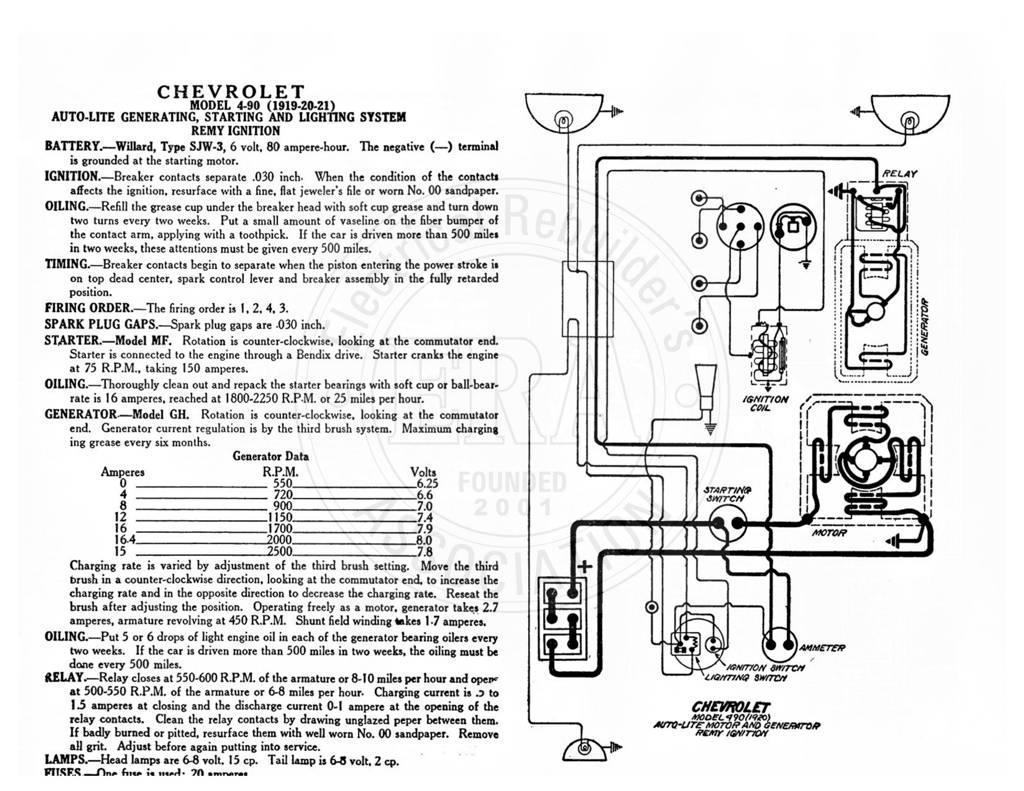

Chevrolet 1919-21 Model 490
CHEVROLET MODEL 4-90 (1919-20-21) AUTO-LITE GENERATING, STARTING AND LIGHTING SYSTEM REMY IGNITION BATTERY.—Willard, Type SJW-3, 6 volt, 80 ampere-hour. is grounded at the starting motor. IGNITION.—Breaker contacts separate .030 inch. When the condition of the contacts affects the ignition, resurface with a fine, flat jeweler’s file or worn No. 00 sandpaper. OILING.—Refill the grease cup under the breaker head with soft cup grease and turn down two turns every two weeks. Put a small amount of vaseline on the fiber bumper of the contact arm, applying with a toothpick. If the car is driven more than 500 miles in two weeks, these attentions must be given every 500 miles. TIMING.—Breaker contacts begin to separate when the piston entering the power

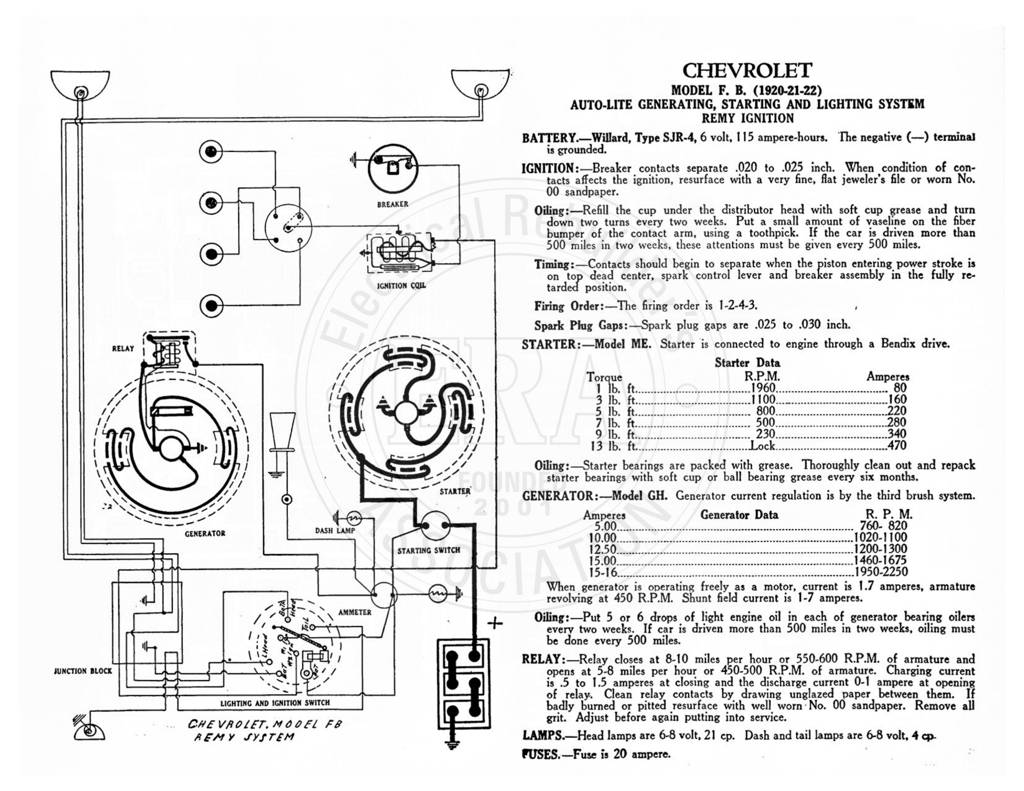

Chevrolet 1920-22 Model FB
CHEVROLET MODEL F. B. (1920-21-22) AUTO-LITE GENERATING, STARTING AND LIGHTING SYSTEM REMY IGNITION BATTERY.—Willard, Type SJR-4, 6 volt, 115 ampere-hours. The negative (—) terminal is grounded. IGNITION :—Breaker contacts separate .020 to .025 inch. When condition of con- tacts affects the ignition, resurface with a very fine, flat jeweler’s file or worn No. 00. sandpaper. Oiling:—Refill the cup under the distributor head with soft cup grease and turn down two turns every two weeks. Put a small amount of vaseline on the fiber bumper of the contact arm, using a toothpick. If the car is driven more than 500 miles in two weeks, these attentions must be given every 500 miles. Timing:—Contacts should begin to separate when the pace entering

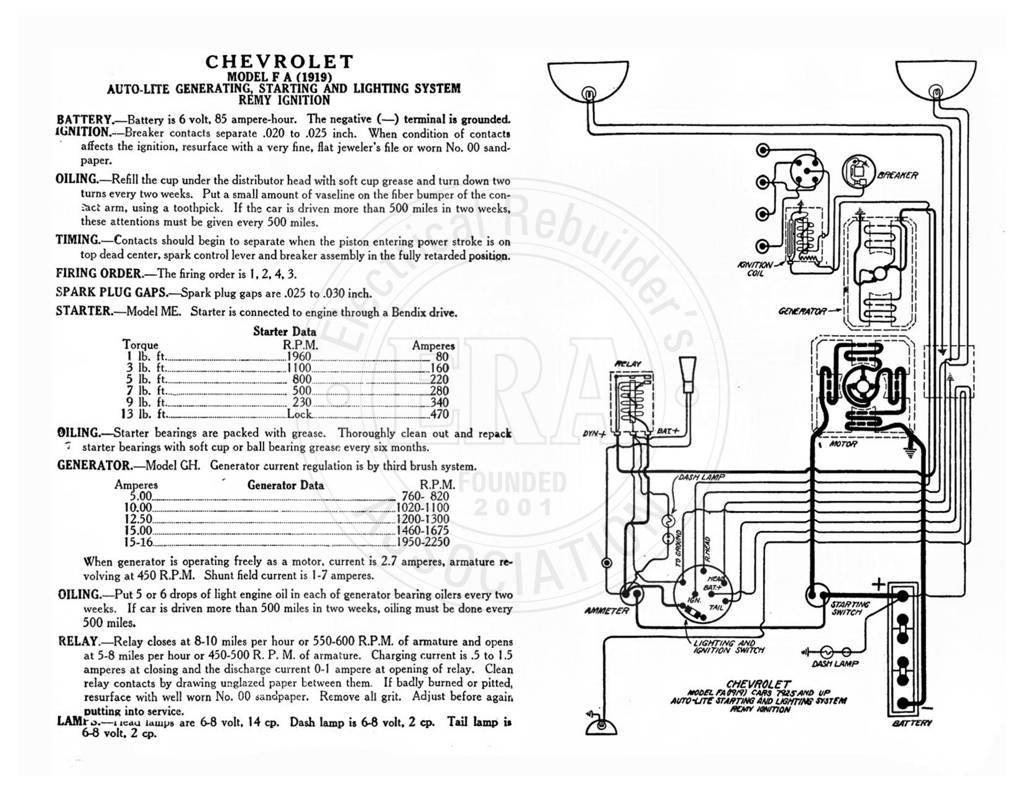

Chevrolet 1919 Model FA
CHEVROLET MODEL F A (1919) AUTO-LITE GENERATING, STARTING AND LIGHTING SYSTEM REMY IGNITION BATTERY.—Battery is 6 volt, 85 ampere-hour. The negative (—) terminal is grounded. {GNITION.-—Breaker contacts separate .020 to .025 inch. When condition of contacts affects the ignition, resurface with a very fine, flat jeweler’s file or worn No. 00 sand- paper. OILING.—Refill the cup under the distributor head with soft cup grease and turn down two turns every two weeks. Put a small amount of vaseline on the fiber bumper of the con- act arm, using a toothpick. If the car is driven more than 500 miles in two weeks, these attentions must be given every 500 miles. TIMING.—Contacts should begin to separate when the piston entering power

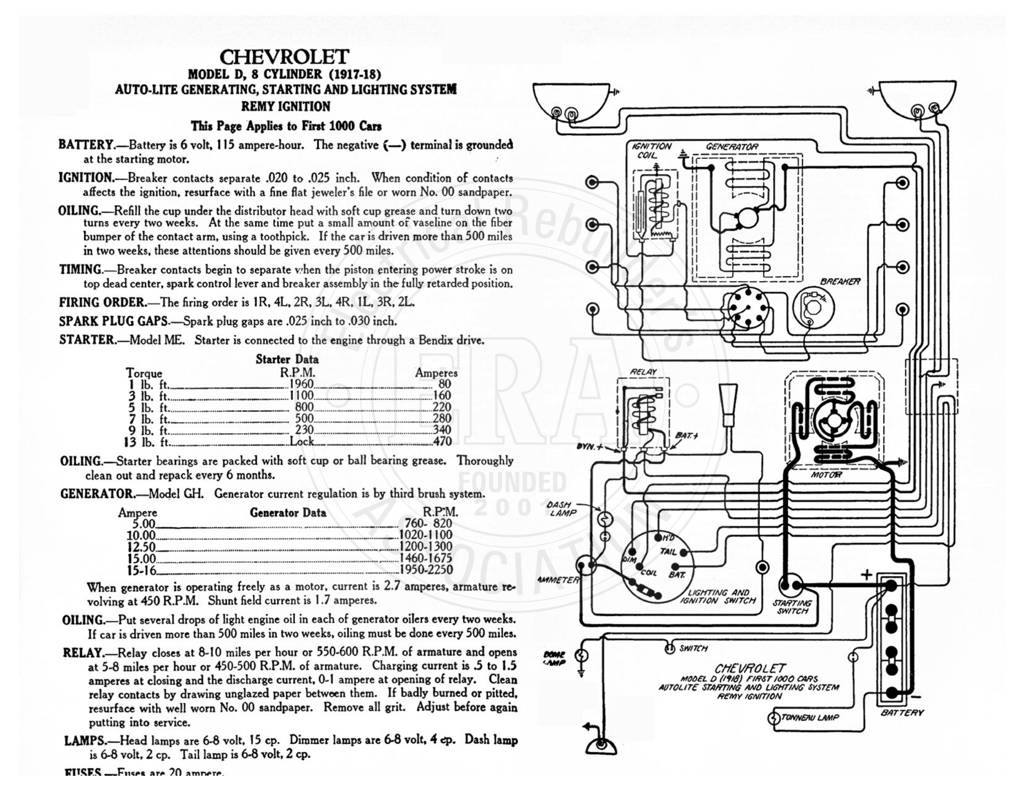

Chevrolet 1917-18 Model D 8-Cylinder
CHEVROLET MODEL D, 8 CYLINDER (1917-18) AUTO-LITE GENERATING, STARTING AND LIGHTING SYSTEM REMY IGNITION This Page Applies to First 1000 Cars BATTERY.—Battery is 6 volt, 115 ampere-hour. The negative (—) terminal is grounded at the starting motor. ; IGNITION.—Breaker contacts separate .020 to .025 inch. When condition of contacts affects the ignition, resurface with a fine flat jeweler’s file or worn No. 00 sandpaper. OILING.—Refill the cup under the distributor head with soft cup grease and turn down two turns every two weeks. At the same time put a small amount of vaseline on the fiber bumper of the contact arm, using a toothpick. If the car is driven more than 500 miles in two weeks, these attentions should be

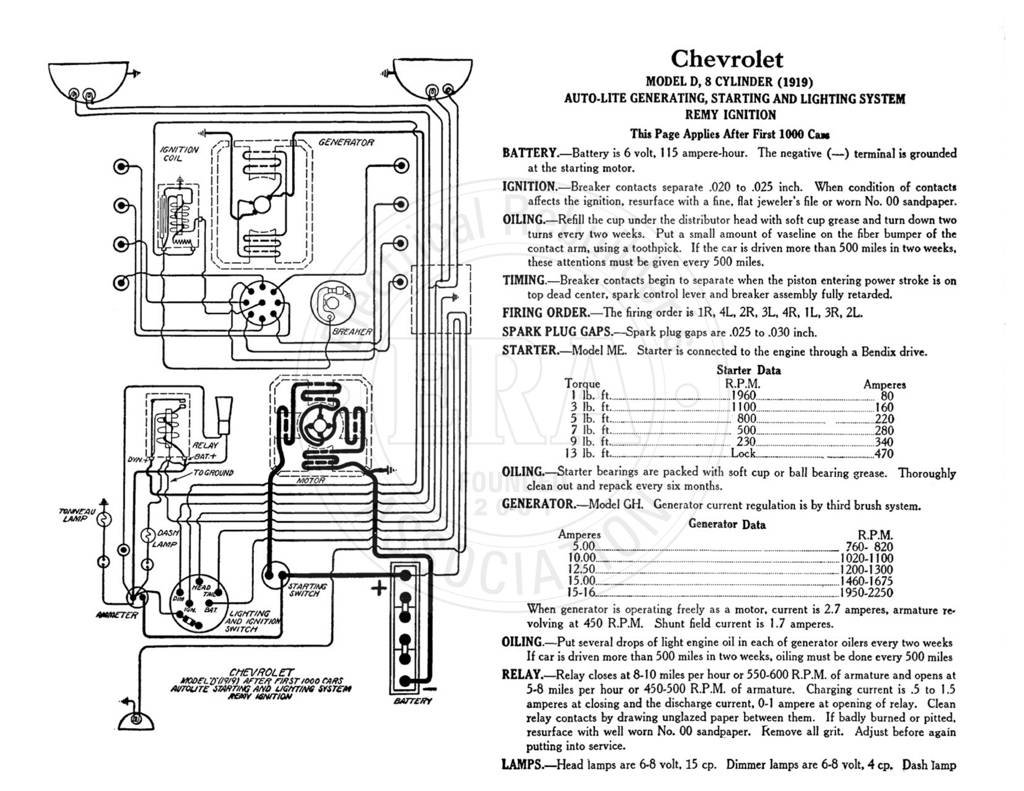

Chevrolet 1919 Model D 8-Cylinder
oY © © © ol ——— TAINS. GENER, IGNITION Oa ap rs ane C COL. a | ee ee re al CHEVROLET MODEL DUI9) AFTER FIRST 1000 CARS AUTOITE STARTING AND LIGHTING SYSTEM AEN AGNITION Chevrolet MODEL D, 8 CYLINDER (1919) AUTO-LITE GENERATING, STARTING AND LIGHTING SYSTEM REMY IGNITION This Page Applies After First 1000 Cans BATTERY.—Battery is 6 volt, 115 ampere-hour. The negative (—) terminal is grounded at the starting motor. IGNITION.—Breaker contacts separate .020 to .025 inch. When condition of contacts affects the ignition, resurface with a fine, flat jeweler’s file or worn No. 00 sandpaper. OILING.—Refill the cup under the distributor head with soft cup grease and turn down two turns every two weeks. Put a small
