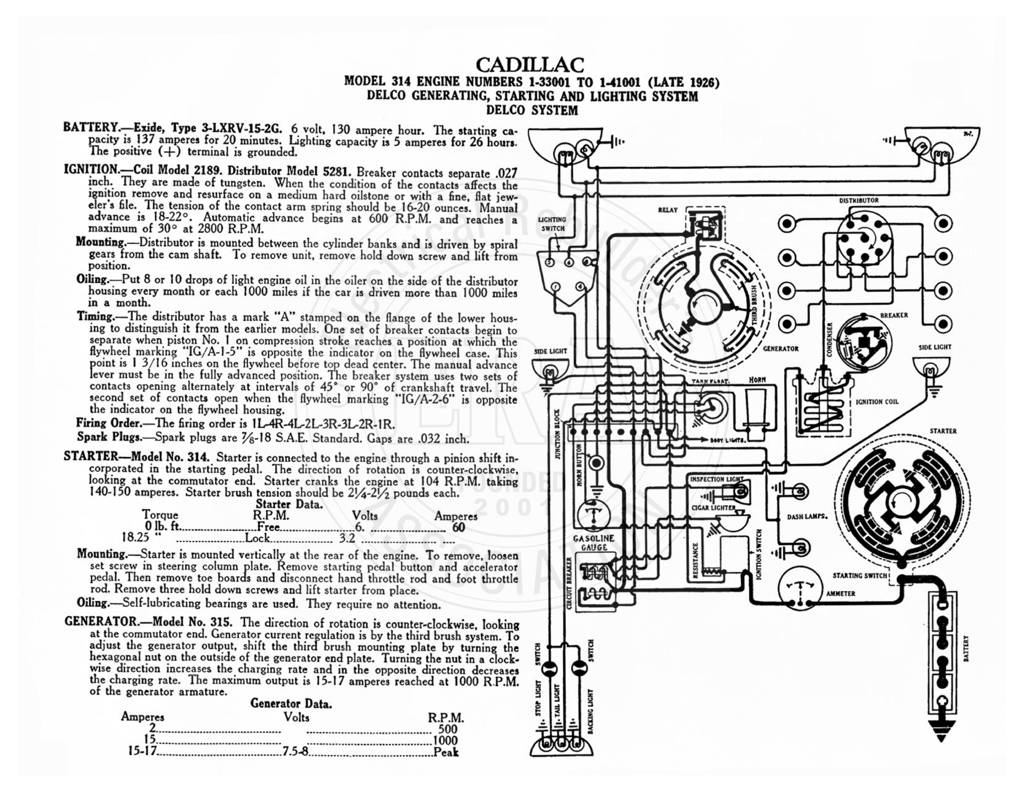

Cadillac Model 314 133,001 UP

CADILLAC MODEL 314 ENGINE NUMBERS 1-33001 TO 1-41001 (LATE 1926) DELCO GENERATING, STARTING AND LIGHTING SYSTEM DELCO SYSTEM BATTERY.—Exide, Type 3-LXRV-15-2G. 6 volt, 130 ampere hour. The starting ca- pacity is 137 amperes for 20 minutes. Lighting capacity is 5 amperes for 26 hours. The positive (+) terminal is grounded. IGNITION.—Coil Model 2189. Distributor Model 5281. Breaker contacts separate .027 inch, They are made of tungsten. When the condition of the contacts affects the ignition remove and resurface on a medium hard oilstone or with a fine, flat jew- eler’s file. The tension of the contact arm spring should be 16-20 ounces. Manual RELAY (eee advance is 18-22°. Automatic advance begins at 600 R.P.M. and reaches a ucHT™ Tae maximum

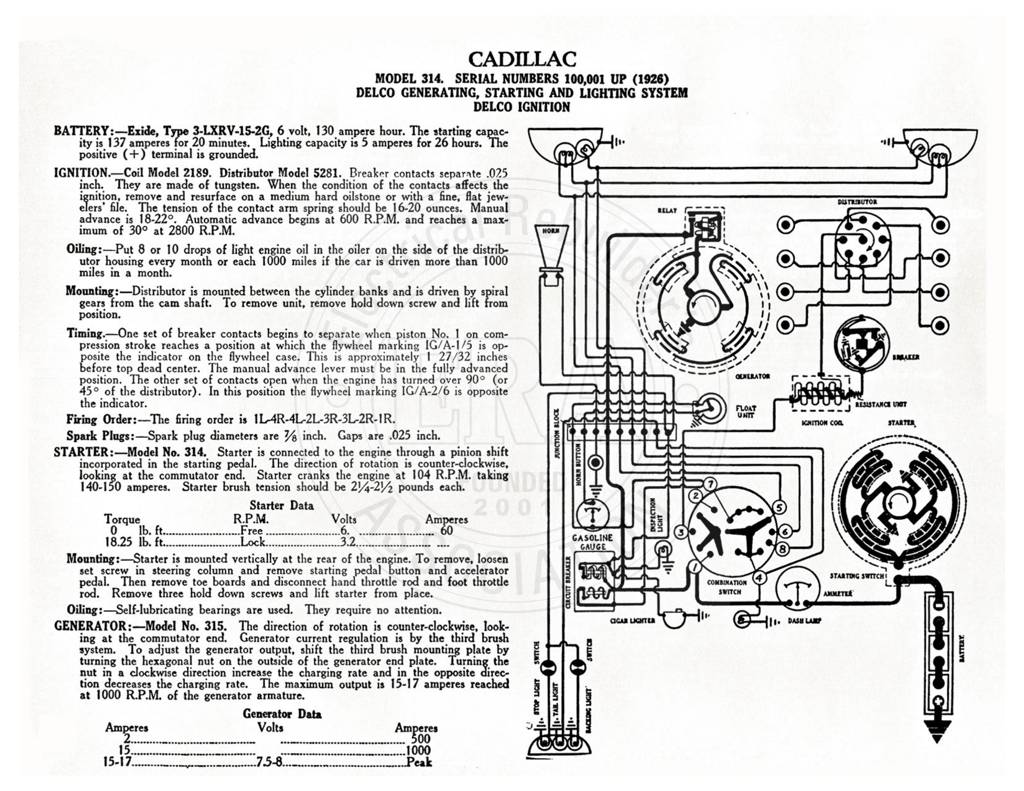

Cadillac Model 314 100,001 UP

CADILLAC MODEL 314. SERIAL NUMBERS 100,001 UP (1926) DELCO GENERATING, STARTING AND LIGHTING SYSTEM DELCO IGNITION BATTERY:—Exide, Type 3-LXRV-15-2G, 6 volt, 130 ampere hour. The starting capac- ity is 137 amperes for 20 minutes. Lighting capacity is 5 amperes for 26 hours. The positive (+) terminal is grounde IGNITION.—Coil Model 2189. Distributor Model 5281. Breaker contacts separate .025 inch. They are made of tungsten. When the condition of the contacts affects the ignition, remove and resurface on a medium hard oilstone or with a fine, flat jew- elers’ file. The tension of the contact arm spring should be 16-20 ounces. Manual advance is 18-22°. Automatic advance begins at 600 R.P.M. and reaches a max- imum of 30° at 2800 R.P.M.

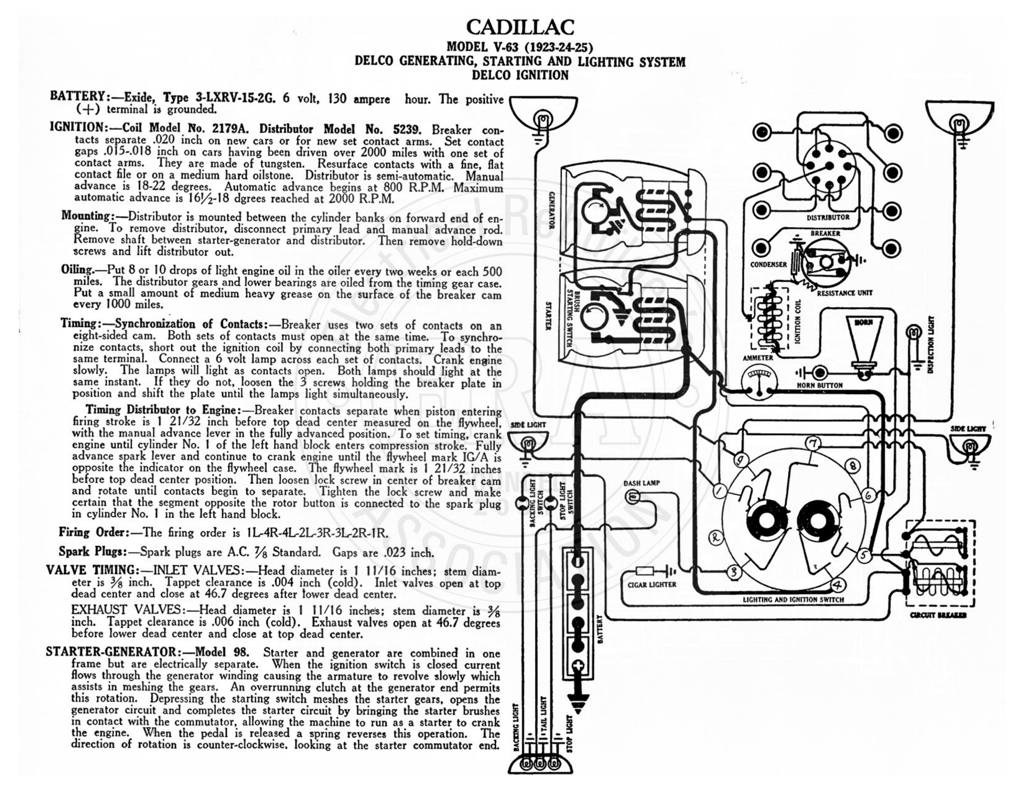

Cadillac Model V-63

CADILLAC MODEL V-63 (1923-24-25) DELCO GENERATING, STARTING AND LIGHTING SYSTEM DELCO IGNITION BATTERY :—Exide, Type 3-LXRV-15-2G. 6 volt, 130 ampere hour. The positive L@/ (>) (+-) terminal is grounde IGNITION:—Coil Model No. 2179A. Distributor Model No. 5239. Breaker con- tacts separate .020 inch on new cars or for new set contact arms. Set contact gaps .015-.018 inch on cars having been driven over 2000 miles with one set of contact arms, They are made of tungsten. Resurface contacts with a fine, flat contact file or on a medium hard oilstone. Distributor is semi-automatic, Manual advance is 18-22 degrees. Automatic advance begins at 800 R.P.M. Maximum © O @ automatic advance is 1614-18 dgrees reached at 2000 R.P.M. 8 Mounting :—Distributor

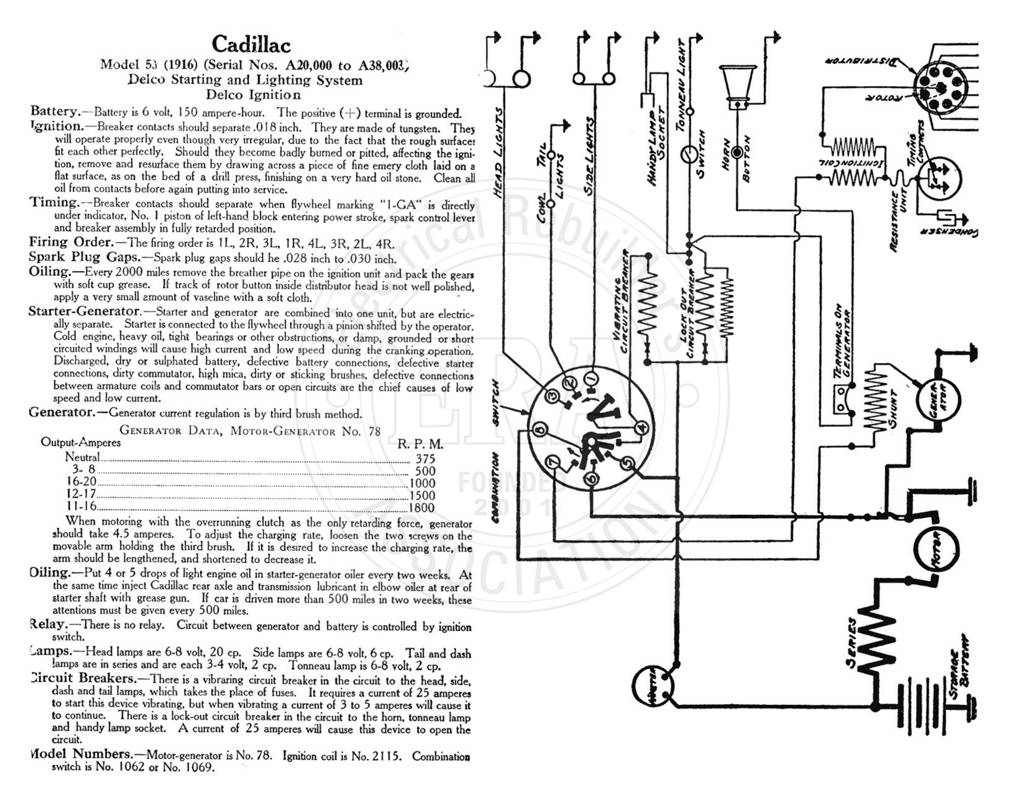

Cadillac Model 53

Cadillac Model 53 (1916) (Serial Nos. A20,000 to A38,002; Deico Starting and Lighting System Delco Ignition Battery.—Battery is 6 volt, 150 ampere-hour. The positive (-}) terminal is grounded. ignition.—Breaker contacts should separate .0!8 inch. They are made of tungsten. They will operate properly even though very irregular, due to the fact that the rough surfaces fit each other perfectly. Should they become badly burned or pitted, affecting the igni- tion, remove and resurface them by drawing across a piece of fine emery cloth laid on a flat surface, as on the bed of a drill press, finishing on a very hard oil stone. Clean all oil from contacts before again putting into service. Timing.—Breaker contacts should separate when flywheel marking

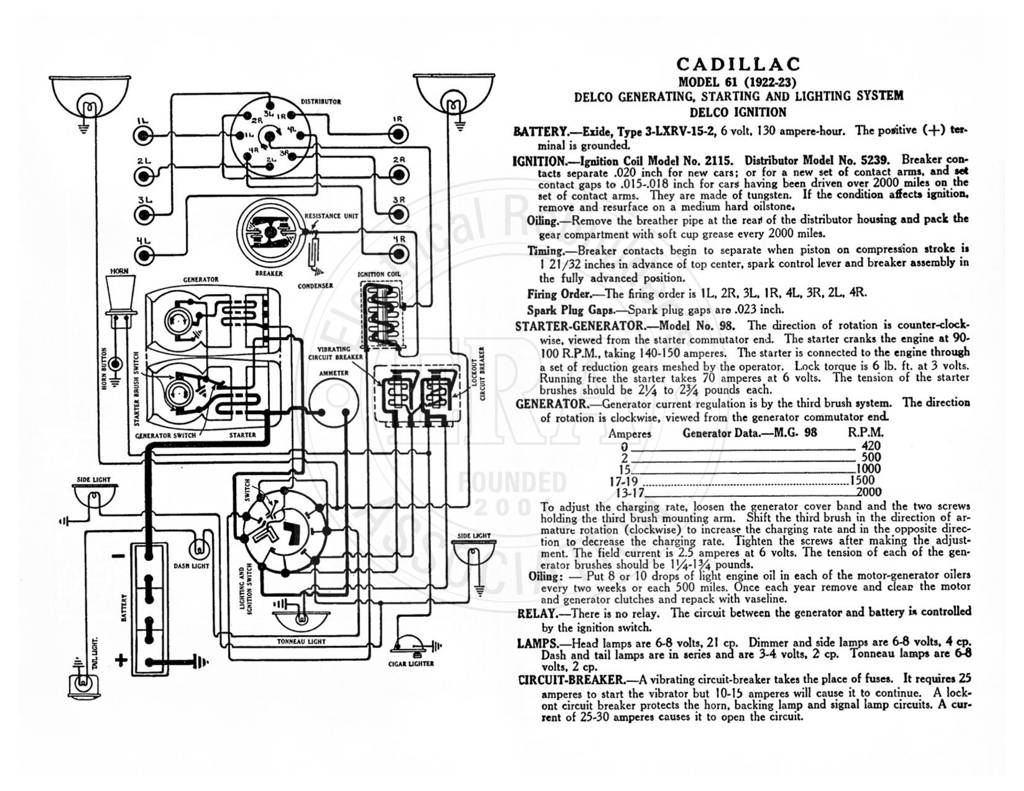

Cadillac Model 61

HORN GENERATOR CONDENSER _ aT oe | HORN BUTTON IH® SIDE LIGHT BATTERY DISTRIBUTOR 3L (®) RESISTANCE UNIT ¥ Yu © St LIGHTING AND 4GNITION SWITCH LOCKOUT CIRCUIT BREAKER CADILLAC MODEL 61 (1922-23) DELCO GENERATING, STARTING AND LIGHTING SYSTEM DELCO IGNITION BATTERY.—Exide, Type 3-LXRV-15-2, 6 volt, 130 ampere-hour. The positive (+-) ter- minal is grounded. IGNITION.—Ignition Coil Model No. 2115. Distributor Model No. 5239. Breaker con- tacts separate .020 inch for new cars; or for a new set of contact arms, and set contact gaps to .015-.018 inch for cars having been driven over 2000 miles on the set of contact arms. They are made of tungsten. If the condition affects ignition, remove and resurface on a medium hard oilstone.

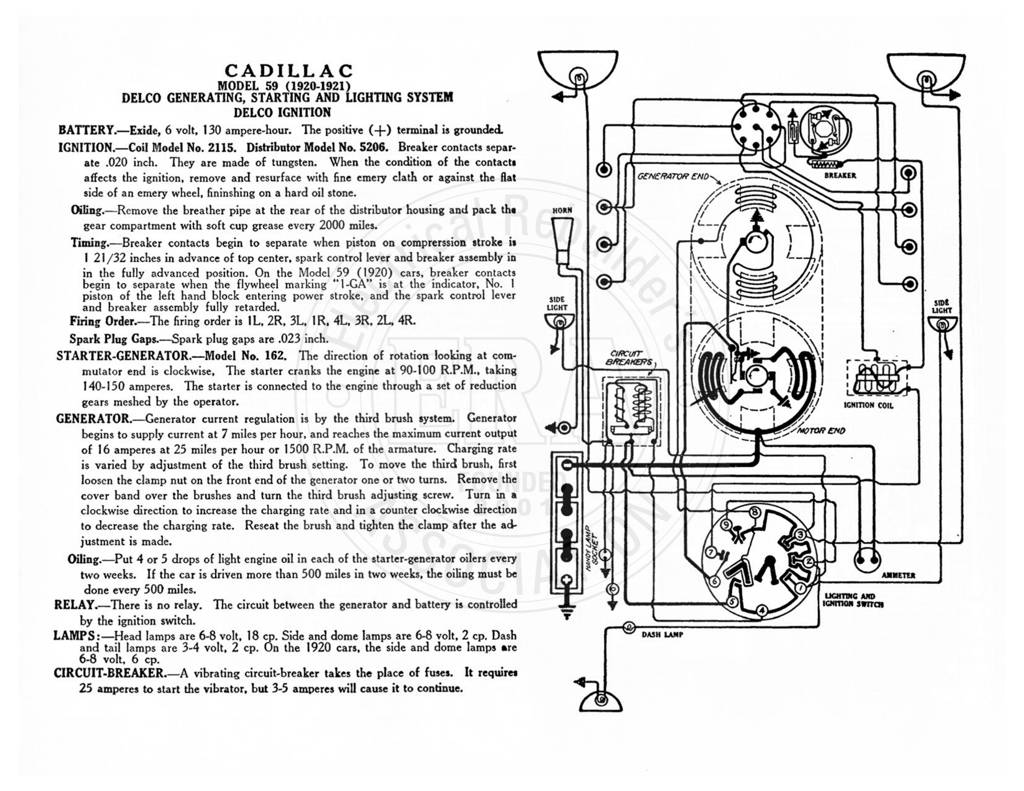

Cadillac Model 59

CADILLAC MODEL 59 (1920-1921) DELCO GENERATING, STARTING AND LIGHTING SYSTEM DELCO IGNITION BATTERY.—Exide, 6 volt, 130 ampere-hour. The positive (-+-) terminal is grounded. IGNITION.—Coil Model No. 2115. Distributor Model No. 5206. Breaker contacts separ- ate .020 inch. They are made of tungsten. When the condition of the contacts affects the ignition, remove and resurface with fine emery clath or against the flat side of an emery wheel, fininshing on a hard oil stone. Oiling—Rcemove the breather pipe at the rear of the distributor housing and pack the gear compartment with soft cup grease every 2000 miles. Timing.—Breaker contacts begin to separate when piston on comprerssion stroke is 1 21/32 inches in advance of top center, spark control lever and breaker

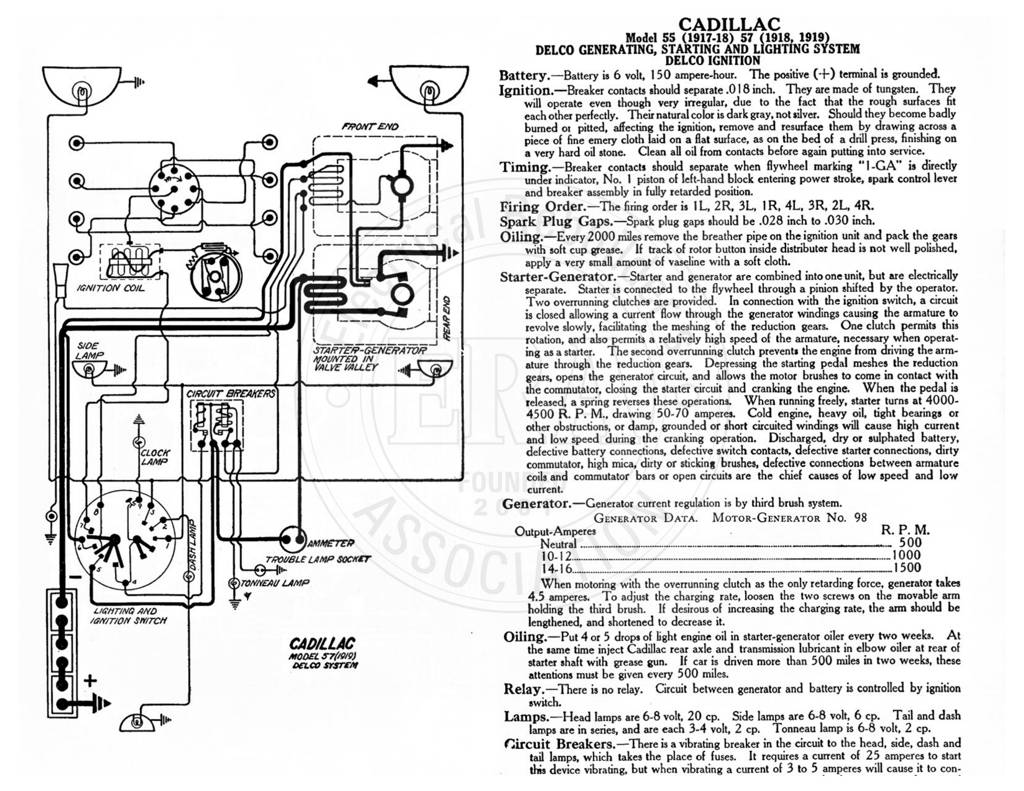

Cadillac Model 55 and Model 57

a LIGHTING AND ¥ JGNITION SNITCH AMMETER TROUBLE LAMP SOCKET te @)7ONNEAU LAMP CADILLAC MODEL S7(1919) DELCO SYSTEM STARTER-GENERATORP MOUNTED IN ALVE VALLEY CADILLAC Model 55 (1917-18) 57 (1918, 1919 DELCO GENERATING, STARTING AND LIGHTING SYSTEM DELCO IGNITION Battery.—Battery is 6 volt, 150 ampere-hour. The positive (-+) terminal is grounded. Ignition.—Breaker contacts should separate .018 inch. They are made of tungsten. They will operate even though very irregular, due to the fact that the rough surfaces fit each other perfectly. Their natural color is dark gray, not silver. Should they become badly burned or pitted, affecting the ignition, remove and resurface them by drawing across a piece of fine emery cloth laid on a flat surface, as on the bed
